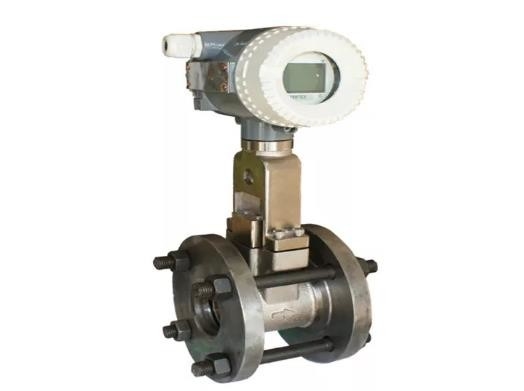

Professional 4 Inch Vortex Flow Meter IP65 1.0% Liquid Accuracy 1.5% Gas Accuracy

                                              4 Inch Vortex Flow Meter IP65 1.0% for Liquid 1.5% for Gas Accuracy

1. Introduction

Vortex Flowmeter is a volume Flowmeter which is produced according to Carmen vortex principle to measure the volume flow rate of gas, steam or liquid, the volume flow rate of standard condition or the mass flow rate. Mainly used in industrial pipeline medium fluid flow measurement, such as gas, liquid, steam and other media.

It is characterized by small pressure loss, large range and high precision, and is almost unaffected by fluid density, pressure, temperature, viscosity and other parameters when measuring volume flow under working conditions. No moving mechanical parts, so high reliability, small maintenance. Instrument parameters can be stable for a long time. Vortex Flowmeter adopts piezoelectric stress sensor with high reliability and can work in the working temperature range of -20℃~250℃. There are analog standard signals, but also digital pulse signal output, easy to use with computer and other digital systems, is a more advanced, ideal measuring instrument.

2. Design & Installation

It is important to install meter,if not installed well, then would affect precision, use-life and damage.

1． To avoid strong current, high frequency and powerful switch set, power supply of meter shall be avoided to near by these equipments.
2． To avoid high-Temp & radiation source. if have to install it, need heat insulation & ventilated measure.
3． To avoid high-Temp & enchant gas, if have to install it, need ventilated measure.
4． Vortex flow meter shall be avoided to install on shaking part of pipeline. If have to install on it,shall add clamp device and vibration pad which located on 2D to enhance shake proof . meter has better to installed indoors, pay attention to waterproof when installing meter outdoors,special notice the joint, make cable conductor to U shape to avoid water get into the amplifier body Around installing place shall save enough space,so that install connection line and maintenance routine

3. Specifications

1) Measuring medium: Steam,gas, liquid(Avoid of multiple- direction fluid)

2) Accuracy:Liquid:1.0% Gas:1.5%

3) Repeatability:Liquid 0.33% Gas:0.5%

4) Range:Liquid:0.7m/s~7m/s Gas:7m/s~40m/s

5) Working pressure:Standard 1.6MPa,2.5~4.0 MPa (on request)

6) Fluid temperature:-40℃~250℃(Common type)；100℃~350℃(High-temperature type)

7) Body material:304 stainless steel(SS316 is optional)

8) Output signal:Pulse(three wires,low level≤1V;High level≧4V);4~20mA;RS485

9) Power supply:24VDC(12VDC),Lithium battery

10) Ambient temperature : -35 ℃ ~ 60 ℃ ( without LCD ); -5℃~60℃(with LCD)

11) Relative humidity:5~95%

12) Protection level:IP65

13) Electrical connection:M20*1.5

4. Dimensional Sketche

5. Configuration
