| Place of Origin: | China |
| Model Number: | ML2000A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | In Carton Packing |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs per month |
| Product Name: | Gauge Pressure Transmitter | Accuracy: | ±0.5% |
|---|---|---|---|
| Measuring Range:: | -0.1KPa~0~100KPa~40MPa (Max. 100MPa) | Process Connection: | M20x1.5 Male Thread; Stainless Steel |
| Output: | 4-20mA | Power Supply: | 24VDC |
| Highlight: | pressure gauge and pressure transmitter,explosion proof pressure transmitter |
||

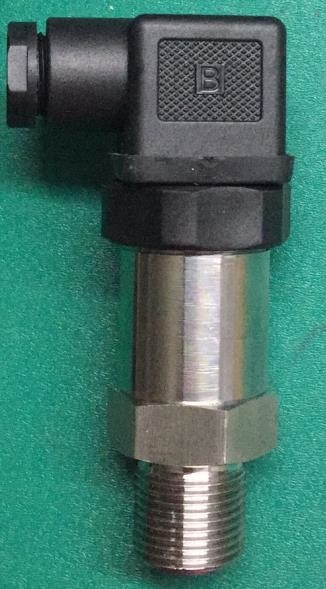

24VDC High Accuracy Gauge Pressure Transmitter 316L Stainless Steel
1. Introduction
ML2000A series pressure transmitter adopts German imported silicon crystal. It is isolation packaged by low temperature welding of metal and export MV signal through inside circuit adjustment, then convert signal into standard two-wired current signal output to pressure through amplifying circuit. It is used to measure pressure, liquid level in industry automatic controlling process.
2. Technical Parameters
Medium Temperature: -40~125℃
Ambient Temperature: -40~85℃
3. Configuration
| Type | Specification Code | Illustration |
| ML2¨¨¨A | --------------------------------- | Pressure Transmitter |
| Transducer | 0-------------------------------- | Diffused Silicon Transducer |
| Accuracy | 8-------------------------------- | ±0.5% |
| Output | C-------------------------------- | 4-20mA |
| G-------------------------------- | Other Requirements,Contact Us. | |
| A-------------------------------- | ||
| Contact Medium Mode | G-------------------------------- | High Temperature Heat Radiation Type(0-200℃) |
| P-------------------------------- | Flat Diaghragm Contact Type | |
| L-------------------------------- | Thread Connection * | |
| Connection Mode | K-------------------------------- | Clamp Connection |
| M-------------------------------- | M20x1.5 * | |
| Q-------------------------------- | Other Thread Connection (Note 1) | |
| Measuring Range | 1-------------------------------- | 0-5~35KPa |
| 2-------------------------------- | 0-35~100KPa | |
| 3-------------------------------- | 0-50~200KPa | |
| 4-------------------------------- | 0-100~350KPa | |
| 5-------------------------------- | 0-200~700KPa | |
| 6-------------------------------- | 0-0.5~2.1MPa | |
| 7-------------------------------- | 0-1~3.5MPa | |
| 8-------------------------------- | 0-3~7MPa | |
| 9-------------------------------- | 0-7~21MPa | |
| 0-------------------------------- | 0-15~40MPa | |
| Y-------------------------------- | Specific Range | |
| Display Header | L-------------------------------- | Common LED Header |
| Z-------------------------------- | Pointer Header | |
| N-------------------------------- | No Header * | |
| Electrical Connection | 5-------------------------------- | M20x1.5 Waterproof Concentrator |
| Power Supply | -A-------------------------------- | 24VDC |
| -B-------------------------------- | 12VDC | |
| Additional Type | -NF1---------------------------- | Ex-proof Certificate: Exd II CT6 |
| -NS1---------------------------- | Intrinsic Safety Type: Exi II CT4 | |
| -M-------------------------------- | Other Requirements (Note2) | |
| Remarks: | ||
| e.g.:ML208CALM6N-A-NF1 0-1.6MPa | ||
| Note1: Please indicate the thread size behind type if you choose this code | ||
| Note2: Please note in order | ||
| *: Standard | ||
