MELAN MEASUREMENT & CONTROL INSTRUMENTS (SHANGHAI) CO., LTD.
 |
| Place of Origin: | China |
| Model Number: | ML-6100S |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotation |
| Packaging Details: | In carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 units per month |
| Velocity Range: | 0.03m/s~12m/s | Accuracy: | ±1% |
|---|---|---|---|
| Repeatability: | 0.2% | Output: | 4-20mA, Pulse, RS232, RS485 |
| Pipe Size: | DN25-DN1200 | Power Supply: | 10~36VDC/AC90~245V |
| Highlight: | insertion type ultrasonic flow meter,ultrasonic clamp on flow meter |
||
China Clamp On Ultrasonic Flow Meter With Data Logger Velocity 0.03m/S~12m/S
I. Introduction

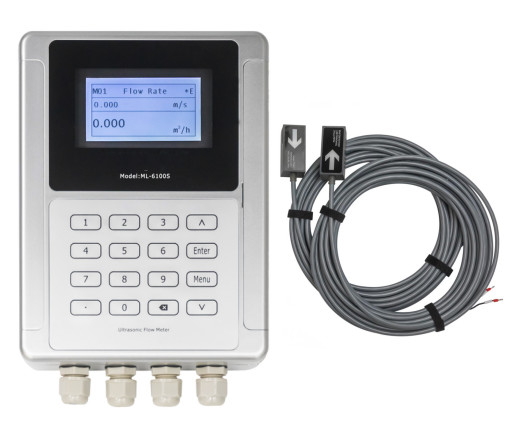

ML-6100S is a wall-mount, clamp- on type ultrasonic flow meter which uses the transit-time technology. Designed using FPGA chip and low-voltage broadband pulse transmission.Both clamp on type sensors and insertion type sensors are available.
ML-6100S has a 240*128 back lit LCD with 4 line menu display and also the clear,user-friendly menu selections make flow meter more simple and convenient to use.Daily, monthly yearly totalizer. Parallel operation of positive, negative and net flow totalizer with scale factor (span) and BTUcapacity. While the output of totalizer pulse and frequency output are transmitted via relay and open collector.
ML-6100S can be used in conjunction with the RTD module and the PT1000 temperature sensor to become an energy meter for measuring the heat and cold consumption of heating pipelines and air-conditioning refrigeration pipelines;
The PT1000 uses high-temperature resistance lines, imported movements,and its sensitivity and working conditions durability are much higher than those of domestic PT100.
II. Working Principle
The external clamp or pipe segment ultrasonic flow meter is a meter that measures the liquid flow in the round tube according to the principle of "speed difference". It uses advanced multi-pulse technology, signal digital processing technology and error correction technology, so that the flow meter can be more adapted to the industrial field environment, measurement is more convenient, economical and accurate. Products reached the advanced level at home and abroad, can be widely used in petroleum, chemical, metallurgy, electricity, water supply and drainage and other fields.
III. Specification
| Performance | |
| Velocity Range | ±0.09ft/s ~ ±39ft/s (±0.03m/s ~ ±12m/s) |
| Accuracy | ±1% of measured value |
| Repeatability | 0.2% of measured value |
| Linearity | ±1% |
| Pipe Size | DN25~DN1200(A pair of sensors) |
| Function | |
| Output | Analog output: 4~20mA, max load 750Ω. |
| Pulse output: 0~10KHz | |
| Communication | RS232/RS485 Modbus |
| Power Supply | 10~36VDC/AC90~245V |
| Display | 240*128 back lit LCD |
| Temperature | Transmitter: -14℉~140℉(-20℃~60℃) |
| Transducer:-40℉~176℉(-40℃~80℃,TT01) | |
| Transducer:-40℉~266℉(-40℃~130℃,TT03) | |
| Humidity | Up to 99% RH,non-condensing |
| Physical | |
| Transmitter | PC/ABS,IP65 |
| Transducer | Encapsulated design,IP68 |
| Double-shielded transducer cable | |
| Standard/maximum cable length:30ft/1000ft(9m/300m) | |
IV. Product Size
V. Configuration
| Model | Transmitter |
| ML-6100S | Wall-mounted Type |
| Velocity Range:±0.09ft/s ~ ±39ft/s (±0.03m/s ~ ±12m/s) | |
| Accuracy :±1% of the measure value | |
| Repeatability:0.2% of the measure value | |
| Display:240*128 back lit LCD | |
| Power Supply: 10~36VDC/AC90~245V | |
| Transmitter Enclosure: IP65, ABS (Temperature: -20℃~50℃) | |
| Output: OCT pulse output 0-10KHz, Relay output, 4-20mA for option | |
| Communication: RS232,RS485 | |
| Code | Output |
| 1 | OCT,Relay,RS232/RS485,4-20mA |
| 2 | OCT,Relay,RS232/RS485,4-20mA, RTD |
| Code | Transducer |
| TT01 | Clamp-on, IP68. Operating temperature:-40 ℉ ~ +176 ℉(-40℃ ~ +80 ℃) |
| TT03 | Clamp-on, IP68. Operating temperature:-40 ℉ ~ +266℉(-40℃ ~ +130 ℃) |
| TT05 | Insertion, IP68. Operating temperature:-40 ℉ ~ +266 ℉(-40℃ ~ +130 ℃) |
| Code | Transducer Cable Length |
| 030 | Standard length 30ft (9m) |
| XXX | Max length to 1000ft (300m) |
| Code | Temperature Transducer |
| PT1000 | PT1000 temperature transducer+RTD module(option) |
| Code | Data Logger |
| SD | SD card(8G)+ SD card module(option) |
Contact Person: Ms. Nancy Zhao
Tel: 0086-21-57652429
Fax: 0086-21-57652430
