MELAN MEASUREMENT & CONTROL INSTRUMENTS (SHANGHAI) CO., LTD.
 |
| Place of Origin: | China |
| Model Number: | ML-F8 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotation |
| Packaging Details: | In carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 units per month |
| Velocity Range: | 0.1m/s~5m/s | Accuracy: | ±2% |
|---|---|---|---|
| Output: | 4-20mA, OCT, RS485 | Data Logger: | Daily, Monthly, Yearly Totalizer |
| Pipe Size: | DN15-DN50 | Power Supply: | 24VDC |
| Highlight: | fixed ultrasonic flow meter |
||

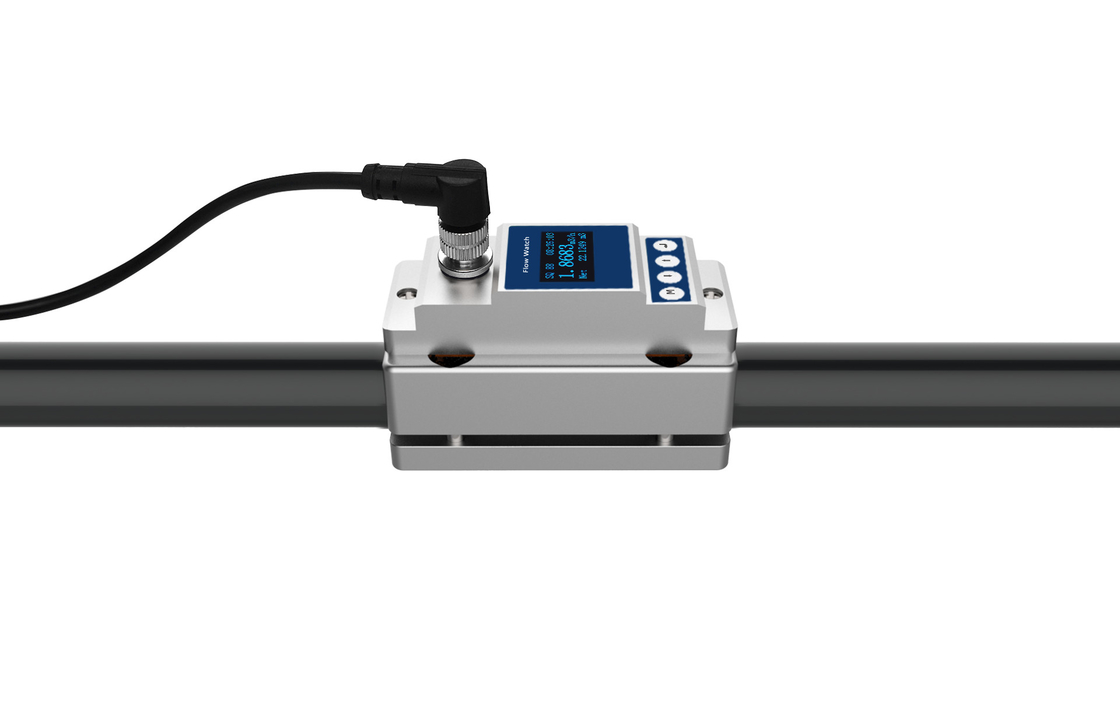

Aluminum Alloy Case DN50 Clamp On Flow Meter
I INTRODUCTION
ML-F8 is very unique in its structural design. It uses a circular magnetic steel to achieve automatic connection during installation.It takes only 2-3 minutes to complete the whole process from installation to measurement. It also adopts the current popular OLED display, which makes it easy to read in low light conditions.
ML-F8 is widely used in the production process for flow measurement and monitoring. The application of the product continuously and effectively controls the flow of the fluid, so as to improve the yield of the product and even save the input of the personnel, bringing benefits to the production enterprise.
II. SPECIFICATION
| Model | ML-F8 |
| Velocity Range | 0.1 m/s ~ 5.0 m/s |
| Accuracy | ± 2.0% |
| Repeatability | 0.80% |
| Pipe Size | DN15,DN20,DN25,DN32,DN40,DN50 |
| Data Storage | Daily, Monthly, Yearly Totalizer |
| Analog output | 4~20mA, Maximum load: 600Ω |
| Alarm output | OCT, Upper and lower limit alarm function (for option) |
| Communication | RS485,support Modbus communication protocol |
| Power Supply | 24VDC |
| Cable Length | 1.8m |
| Keypad | Four light touch buttons |
| Screen | OLED 128*64 screen display |
| Units | Metric and imperial units are available Cubic Meters(m3), Liters(L),USA Gallons(GAL)/hour, USA Gallons(GAL)/min Default unit setting: m3/h |
| Totalizer | Six bit digit |
| Piper Material | Stainless steel pipe, carbon steel pipe, PVC |
| Case Material | Aluminum alloy |
| Environment Temp. | 0℃-50℃ |
| Medium Temp. | 0℃-50℃ |
| Environment Humidity | 0-95% relative humidity, without condensation |
| IP Grade | IP54 |
III.FLOW WATCH SETTING
Special instructions:
Flow Watch , which is designed for different pipe diameter and materials, will beset in standard setting before it leaves the factory. There is no need to reset.
IV. INSTALLATION STEPS
