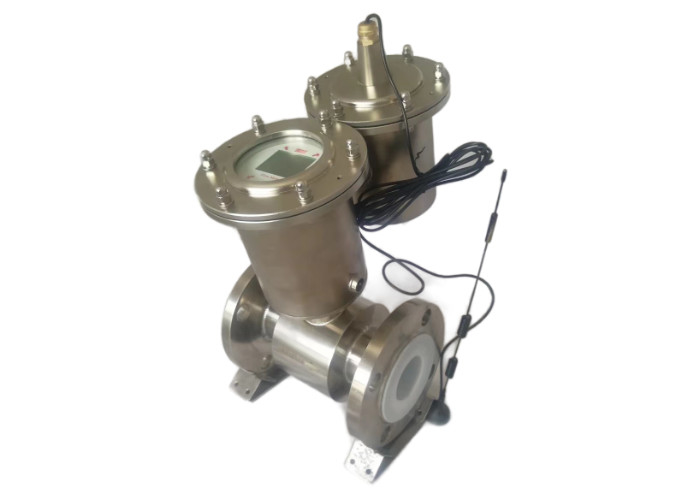

Chemicals 4.0MPa SS304 Electromagnetic Flow Meter

                                             Battery Powered Electromagnetic Flow Meter with SS304 Boday for Chemicals​

1. Introduction

MLF electromagnetic Flowmeter works according to Faraday's law of electromagnetic induction and is composed of sensors and converters. Used to measure the electrical conductivity of liquids or solids. In general, its electrical conductivity should be greater than 5 μS / cm (the electrical conductivity of tap water and raw water is about 100 ~ 500 μS / cm), can also be used to measure various media such as acid, alkali, salt water, pulp or pulp. But these media cannot contain large amounts of magnetic materials and bubbles.

MLF electromagnetic Flowmeter is an instrument for measuring liquid fluidity. It is widely used in flow measurement in metallurgy, chemical industry, paper making, environmental protection, petroleum, textile, food, urban management, waterworks and other industries.

2. Features

MLF electromagnetic Flowmeter is explosion-proof design.

function of low conductivity measurement.

There are 9 language(Chinese, English, Korean, Polish, Turkish, French and Portuguese languages) options to meet the needs of different customers.

Have self-regulation function and self-examination.

different outputs are optional: hart, RS485 Profibus ,4-20 mA, frequency, pulse.

3. Specification

4. Dimensional Sketches

a. Dimension of Converter

                                                                      Divided Type

                                                                      Integrated Type

                                                                  Battery Powered Type

b. Dimension of Sensor

5. Configuration

6. Instrument Detection & Maintenance

Electromagnetic flowmeter has self-diagnosis function. In addition to power supply and hardware circuit faults, the system also alarms other faults in general use. These messages are prompted in the bottom right corner of the screen.

Maintenance and repair

A) The sensor installation site shall meet the requirements of Section 4, and please keep the shell clean;

B) The transmitter shall be placed in a clean, ventilated and dry place;

C) The instrument shall be inspected every two years. For high-precision users, the instrument shall be submitted for review.

Transportation and storage

A) The instruments must be packed well before transportation and handled with care during loading and unloading.

B) The storage site must be dry and ventilated to avoid corrosive gas, and the ambient temperature should not be too low or too high;

C) Storage time should not exceed three years.

3. Open the box for inspection

A) The package must not be opened with a heavy hammer. Care must be taken not to damage the instrument

B) Carefully check the contents according to the packing list.
