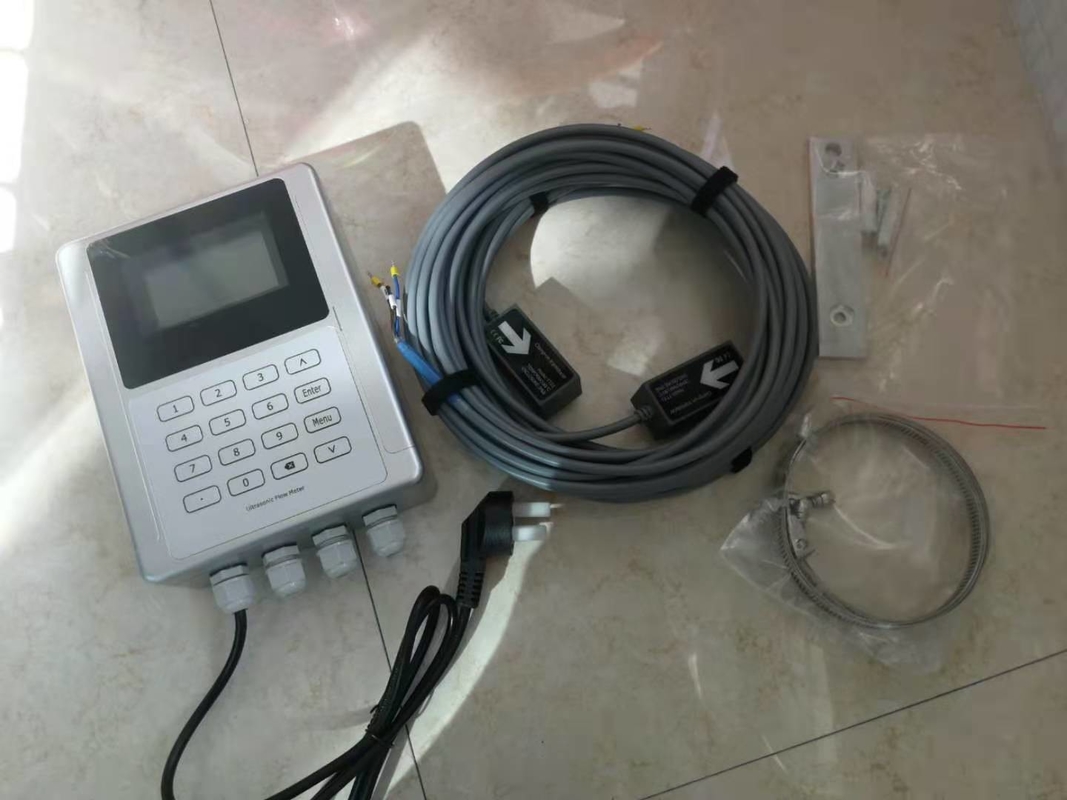

DN25 Fix Mounting Clamp On Ultrasonic Flow Meter

                                                                               Fix Mounting Clamp On Ultrasonic Flow Meter
I. Introduction

ML-6100S is a wall-mounted clamped ultrasonic Flowmeter using jet lag technology. The transmission is designed with FPGA chip and low voltage broadband pulse.Two can provide clamping sensor and plug-in sensor.

The ML-6100S has a 240x128 backlit LCD,4 line menu display, and a clear, user-friendly menu selection makes the Flowmeter easier and easier to use every day, a monthly-annual accumulator.

The parallel operation of positive, negative and net flow accumulators has the capacity of scale factor (span) and BTU.The pulse output and frequency output of the accumulator are transmitted through the open circuit of the relay and the collector.

II. Configuration

Standard model: ML-6100S-1-TT01-030

Description: Standard clamp-on type ultrasonic flow meter, OCT, Relay,

RS485, 4-20mA, 30ft cable with TT01 transducers


IV. Working Principle
External clamp type or pipe section type ultrasonic flow meter is an instrument that measures liquid

flow in a circular pipe on the principle of  "velocity difference method". It adopts advanced multi-pulse

technology, signal digital processing technology and error correction technology, so that the flow meter

can more adapt to the environment of the industrial site, measurement more convenient, economical

and accurate. The products reach the advanced level at home and abroad, and can be widely used in

petroleum, chemical industry, metallurgy, electric power, water supply and drainage and other fields.
