MELAN MEASUREMENT & CONTROL INSTRUMENTS (SHANGHAI) CO., LTD.

|
| Place of Origin: | China |
| Model Number: | LWGYML |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | In Carton or Wooden Box |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500pcs per month |
| Product Name: | Turbine Flow Meter | Output: | 4-20mA Or Pulse |
|---|---|---|---|
| Power Supply: | 12VDC-24VDC Or Battery Operated | Pipeline Diameter: | DN4-DN200 |
| Protection Class: | IP65 | Accuracy: | ±1%R、±0.5%R、±0.2%R(Special Order) |
| Highlight: | Gas Measurement Turbine Flowmeter |
||

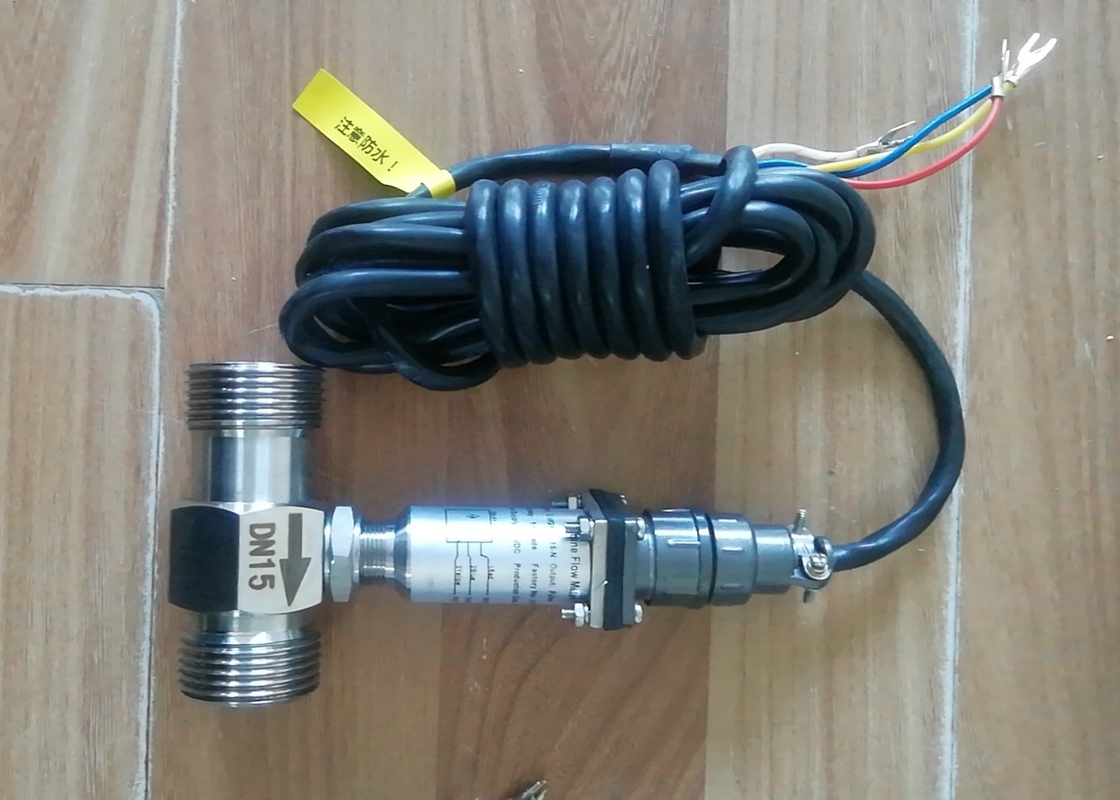

Industrial Liquid Turbine Flow Meter Liquid & Gas Measurement
1. Introduction
LWGYML series intelligent liquid turbine flow meter is a new type of intelligent instrument with integrated turbine flow sensor and display product calculation developed by advanced ultra-low power single-chip microcomputer technology, which has obvious advantages such as compact mechanism, clear reading, high reliability, undisturbed by external power supply, lightning resistance and low cost.
2. Application
Turbine flowmeter is widely used in the following measurement objects: petroleum, organic liquid, inorganic liquid, liquefied gas, natural gas, coal gas and cryogenic fluid. In foreign countries, liquefied petroleum gas, refined oil and light crude oil are used for trade settlement in the first and last stations of large crude oil pipelines. In Europe and the United States, turbine flowmeter is second only to orifice flowmeter, while in the Netherlands alone, more than 2,600 turbine flowmeters with various sizes and pressures ranging from 0.8MPa to 6.5MPa have been used in natural gas pipelines, and they have become excellent natural gas flowmeters. Although the excellent metering characteristics of turbine flowmeter are favored by people, it gives people the impression that it is made up of moving parts and has a short service life, so it is inevitable to hesitate when choosing them.
3. Features
4. Specifications
| Pipeline Diameter(mm) and Connection |
4,6,10,15,20,25,32,40 Thread Connection |
| (15,20,25,32,40) 50,65,80,100,125,150,200 Flange Connection |
|
| Accuracy | ±1%R,±0.5%R,±0.2%R(Special Order) |
| Turn Down Ratio | 10:1; 15:1; 20:1 |
| Material | 304SS,316(L)SS, etc |
| Medium Temperature | -20℃~+110℃ |
| Environmental Conditions | Temperature: -10℃~+55℃ Relative humidity: 5%~90% Atmospheric pressure: 86~106KPa |
| Power supply | Sensor:+12VDC,+24VDC(Option) Transmitter:+24VDC Local Display:3.2V Lithium Battery |
| Output Signal | Sensor:Pulse Frequency Signal(Low level≤0.8V, High level≥8V) Transmitter:Two Wired 4-20mA Current Signal |
| Signal Cable | STVPV 3x0.3(Three Wired),2x0.3(Two Wired) |
| Signal Cable Connection | Houseman Connector(Standard Type) Inner Thread M20x1.5(Explosion Type) |
| Transmission Distance | ≤1000m |
| Explosion Proof | None(Standard Type) EXdIIBT6(Explosion Proof) |
| Protection Class | IP65 |
5. Configuration
| LWGYML Series Turbine Flow Meter Configuration | ||||||||||
| Model | LWGYML | |||||||||
| Pipe Material | 4 | 4mm | ||||||||
| 6 | 6mm | |||||||||
| 10 | 10mm | |||||||||
| ...... | ||||||||||
| 200 | 200mm | |||||||||
| Model Description | N | No Display,12VDC Power Supply,Pulse Output, High Level≥8V Low Level≤0.8V | ||||||||
| A | No Display,4-20mA 2 Wired Current Output | |||||||||
| B | Local Display,Battery Operated | |||||||||
| C | Local Display,4-20mA 2 Wired Current Output | |||||||||
| C1 | Local Display,RS485 Output | |||||||||
| C2 | Local Display, HART Output | |||||||||
| Accuracy | 05 | 0.5 Grade | ||||||||
| 10 | 1.0 Grade | |||||||||
| Turbine Type | W | Extended Ratio | ||||||||
| S | Standard Ratio | |||||||||
| Material | S | SS 304 | ||||||||
| I | SS 316(L) | |||||||||
| Explosion Proof | N | None | ||||||||
| E | Explosion Type(ExmIICT6 or ExdIIBT6) | |||||||||
| Pressure Rate | N | Normal Pressure | ||||||||
| H | High Pressure | |||||||||
| Connection Type | T | Thread Connection | ||||||||
| F | Flange Connection | |||||||||
| Filter | N | None | ||||||||
| F | With Filter | |||||||||
6. Details
