MELAN MEASUREMENT & CONTROL INSTRUMENTS (SHANGHAI) CO., LTD.
 |
| Place of Origin: | China |
| Model Number: | MLF |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | In Carton or Wooden Box |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500pcs per month |
| Product Name: | Electromagnetic Flow Meter Water Type | Pipeline Diameter: | DN25 |
|---|---|---|---|
| Accuracy: | 0.5% | Electrode: | 316SS, Hc, Ta, Ti, Others |
| Flange Type: | GB, ANSI, JIS, BS, Others | IP Class: | IP65, IP68 |
| Highlight: | DN25 Electromagnetic Flow Meter,316SS Electromagnetic Flow Meter,RS485 Electromagnetic Flow Meter |
||
Electromagnetic Flow Meter Water Type Flow Meters
1. Features
The MLF electromagnetic flow meter is for explosive proof design.
It has the function of low conductivity measurement.
It has Chinese, English, Korean, Polish, Turkish, French and Portuguese languages languages for option to satisfy different customers’ requirements.
It has the function of self-adjustment and self-checking.
A variety of outputs are optional: RS485, 4-20mA, Frequency, Pulse.
2. Specification
| MLF Type | Divided Type | Integrated Type | Explosive Proof Integrated Type | Battery Powered Type | Heat Energy Type |
| Accuracy | ±0.2% or ±0.5% | ||||
| Pipeline Diameter | DN10-DN2000 | DN10-DN600 | DN25-DN2000 | ||
| Flange | GB, ANSI, JIS, BS, Others | ||||
| Pressure | DN10-DN600 1.0 1.6 2.5 4.0MPa | ||||
| DN700-DN2000 0.6 1.0 1.6MPa | |||||
| Liner Material | CR, PTFE, PU, Hard Rubber, PFA, FEP(F46) | ||||
| Conductivity | ≥5µs/cm(Please contact us if it is less than 5µs/cm) | ||||
| Electrode | 316L SS, Hb, Ta, Ti, Hc, Tungsten Carbide, Others | ||||
| Protection Class | IP65, IP66, IP67, IP68 | ||||
| Medium Temperature | -25~180℃ (Please refer to liner material) |
-25~80℃(Please refer to liner material) | -25~180℃ (Please refer to liner material) |
||
| Ambient Temperature for Accuracy Influence | <±0.1%/10℃ or <±0.25%/10℃ at the ambient temperature of -25~60℃ | ||||
| Repetability | ≤±0.1% or ±0.25% | ||||
| Analog Output Error | ≤±0.02mA | ||||
| Velocity | 0.3~10m/s | ||||
| Electrical connection | M20x1.5 Seal Cartridge, GB1/2, NPT1/2 | ||||
| Output | 4-20mA, Pulse, RS485 | ||||
3. Dimensional Sketches
a. Dimension of Converter

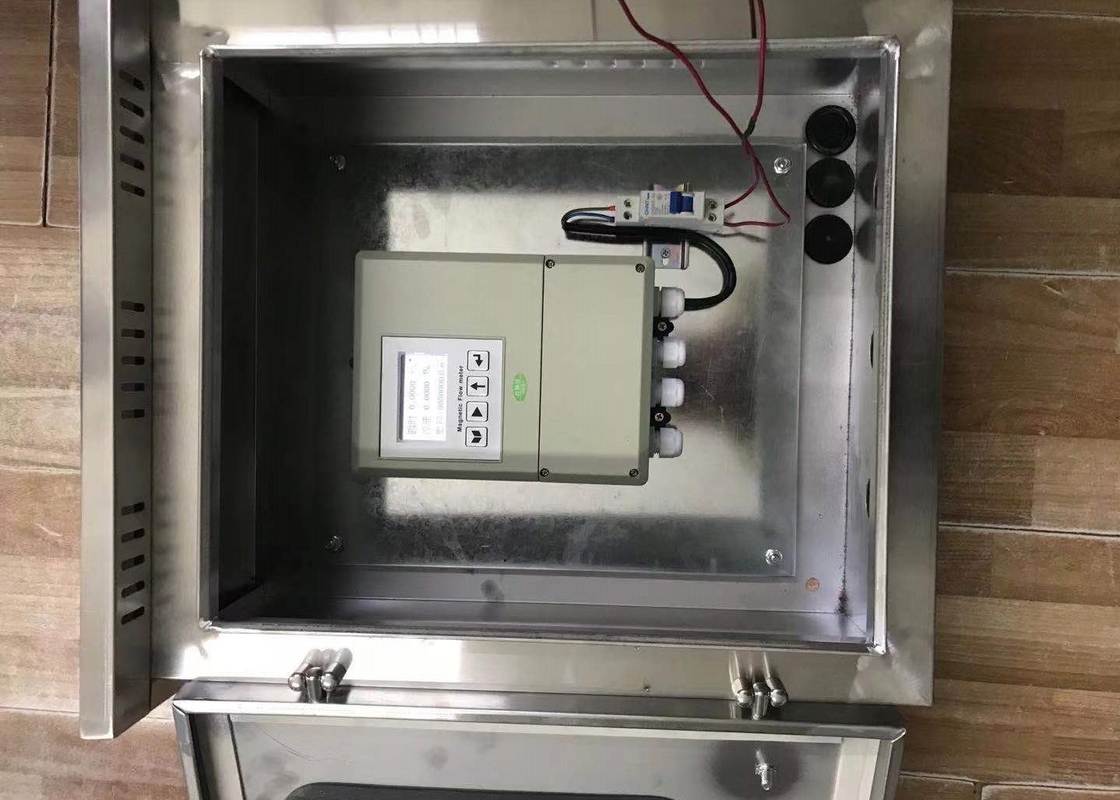

Divided Type
b. Dimension of Sensor
| Pipeline Diameter | Dimension | ||
| L | W | H | |
| 15 | 160 | 95 | 130 |
| 20 | 160 | 105 | 137 |
| 25 | 160 | 115 | 150 |
| 32 | 160 | 135 | 160 |
| 40 | 200 | 145 | 175 |
| 50 | 200 | 160 | 185 |
| 65 | 200 | 180 | 205 |
| 80 | 200 | 195 | 215 |
| 100 | 250 | 215 | 235 |
| 125 | 250 | 245 | 275 |
| 150 | 300 | 280 | 300 |
| 200 | 350 | 335 | 355 |
| 250 | 400 | 400 | 405 |
| 300 | 500 | 455 | 460 |
| 350 | 500 | 515 | 520 |
| 400 | 600 | 575 | 580 |
| 450 | 600 | 635 | 630 |
| 500 | 600 | 710 | 685 |
| 600 | 600 | 835 | 795 |
| 700 | 700 | 905 | 910 |
| 800 | 800 | 1020 | 1030 |
| 900 | 900 | 1120 | 1120 |
| 1000 | 1000 | 1245 | 1250 |
| 1200 | 1200 | 1465 | 1470 |
