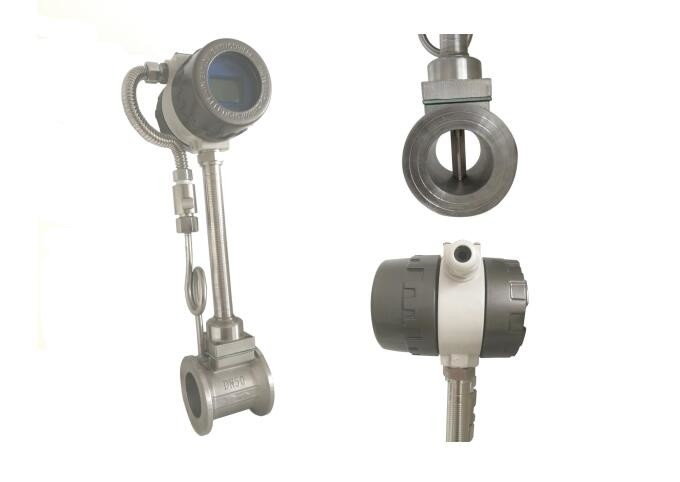

                                            Clamp Type Vortex Flowmeter Low Flow Rate with LCD Display

1. Introduction

LUGBML is based on vonkarman's vortex principle and uses pyelectron crystals as a test element. It is a new type of stress detection vortex street flow meter. It has the advantages of large range ratio, high precision, small pressure loss, good media versatility, pulse output and flow ratio, easy to connect with the computer, because the sensor probe and vortex generator are installed separately, high temperature-resistant die-electric crystals do not touch the instrument simple structure, good versatility, high stability. The LUGBML series of vortex street flow meter sensors can be used to detect and measure the flow of a wide range of gases, liquids and vapors. Can be used with my company ML6000 series vortex street flow meters. It can also be combined with computers and temperature, pressure, density sensors to form a high-precision mass flow or heat flow detection system.

2. Features

• Vortex flowmeter has simple and firm structure, no moving parts and good stability.
• Simple installation and convenient maintenance.
• The measuring range is wide, and the ratio is as high as 10:1.
• Compensate the fluid volume as required, and do not need to recalibrate the instrument coefficient after replacing accessories.

3. Specifications

1) Measuring medium: Steam,gas, liquid(Avoid of multiple- direction fluid)

2) Accuracy:Liquid:1.0% Gas:1.5%

3) Repeatability:Liquid 0.33% Gas:0.5%

4) Range:Liquid:0.7m/s~7m/s Gas:7m/s~40m/s

5) Working pressure:Standard 1.6MPa,2.5~4.0 MPa (on request)

6) Fluid temperature:-40℃~250℃(Common type)；100℃~350℃(High-temperature type)

7) Body material:304 stainless steel(SS316 is optional)

8) Output signal:Pulse(three wires,low level≤1V;High level≧4V);4~20mA;RS485

9) Power supply:24VDC(12VDC),Lithium battery

10) Ambient temperature : -35 ℃ ~ 60 ℃ ( without LCD ); -5℃~60℃(with LCD)

11) Relative humidity:5~95%

12) Protection level:IP65

13) Electrical connection:M20*1.5

4. Dimensional Sketche

5. Design & Installation

It is very important to install the instrument. If it is not installed well, it will affect the accuracy, service life and damage.

1. In order to avoid high-voltage, high-frequency and high-power switch groups, the instrument power supply should be avoided close to these devices.

2. Avoid high temperature and radiation sources. If installation is required, heat insulation and ventilation measures shall be taken.

3. To avoid high temperature and enchanted gas, ventilation measures should be taken if installation is required.

4. Vortex flowmeter should be avoided to be installed in the shaking part of pipeline. If it must be installed on it, the clamping device and vibration pad located in 2D should be added to strengthen the shock resistance. It is best to install the instrument indoors, pay attention to waterproof when installing outdoors, pay special attention to the joint, and make the cable lead into U-shape to avoid water entering the amplifier body. The installation place should save enough space for installation of connecting wires and daily maintenance.
