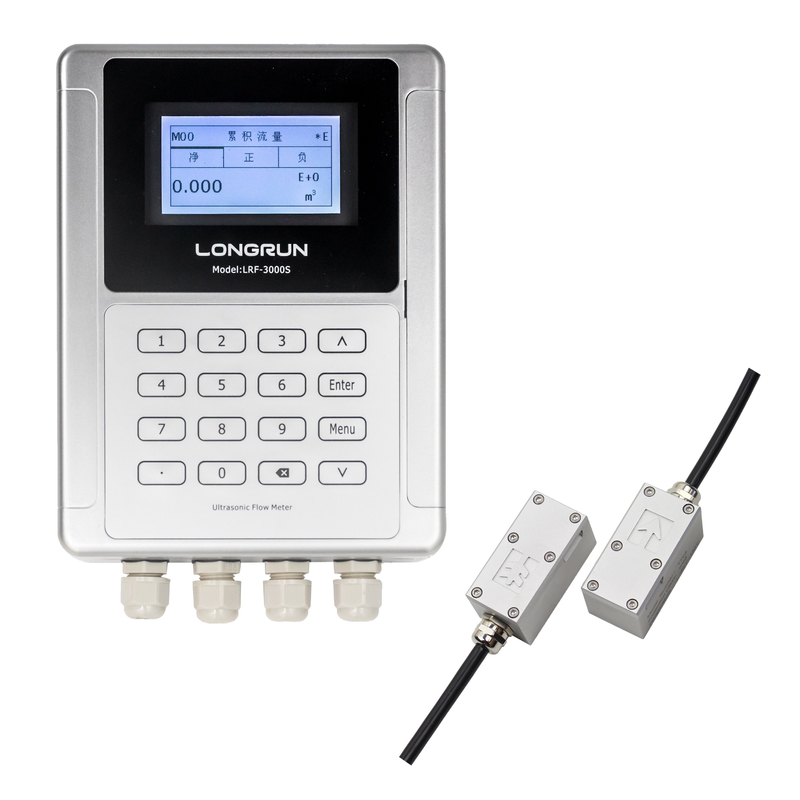

Back Lit LCD Display RS232 RS485 Fixed Ultrasonic Flow Meter
I. Introduction
ML-6100S is a wall-mount, clamp- on type ultrasonic flow meter which uses the transit-time technology. Designed using FPGA chip and low-voltage broadband pulse transmission.Both clamp on type sensors and insertion type sensors are available.
ML-6100S has a 240*128 back lit LCD with 4 line menu display and also the clear,user-friendly menu selections make flow meter more simple and convenient to use.Daily, monthly yearly totalizer. Parallel operation of positive, negative and net flow totalizer with scale factor (span) and BTUcapacity. While the output of totalizer pulse and frequency output are transmitted via relay and open collector.
ML-6100S can be used in conjunction with the RTD module and the PT1000 temperature sensor to become an energy meter for measuring the heat and cold consumption of heating pipelines and air-conditioning refrigeration pipelines;
The PT1000 uses high-temperature resistance lines, imported movements,and its sensitivity and working conditions durability are much higher than those of domestic PT100.
II. Working Principle
The clamp-on or tube-segment ultrasonic flow meter is a meter that measures the flow of liquid in a round tube based on the principle of the "speed difference method". It uses advanced multi-pulse technology, signal digital processing technology and error correction technology to make the flow meter more adaptable to the environment of the industrial site, and the measurement is more convenient, economical and accurate. The products have reached the advanced level at home and abroad, and can be widely used in petroleum, chemical, metallurgy, electric power, water supply and drainage fields.
III. Specification
| Performance | |
| Velocity Range | ±0.09ft/s ~ ±39ft/s (±0.03m/s ~ ±12m/s) |
| Accuracy | ±1% of measured value |
| Repeatability | 0.2% of measured value |
| Linearity | ±1% |
| Pipe Size | DN25~DN1200(A pair of sensors) |
| Function | |
| Output | Analog output: 4~20mA, max load 750Ω. |
| Pulse output: 0~10KHz | |
| Communication | RS232/RS485 Modbus |
| Power Supply | 10~36VDC/AC90~245V |
| Display | 240*128 back lit LCD |
| Temperature | Transmitter: -14℉~140℉(-20℃~60℃) |
| Transducer:-40℉~176℉(-40℃~80℃,TT01) | |
| Transducer:-40℉~266℉(-40℃~130℃,TT03) | |
| Humidity | Up to 99% RH,non-condensing |
| Physical | |
| Transmitter | PC/ABS,IP65 |
| Transducer | Encapsulated design,IP68 |
| Double-shielded transducer cable | |
| Standard/maximum cable length:30ft/1000ft(9m/300m) | |
IV. Straight Pipe Demand
We suggest avoiding the valve, T-branch pipe and elbows if the condition allow.
Please satisfied the hardest position installation requirements when you face more than one interfering resource.
V. Configuration
| Model | Transmitter |
| ML-6100S | Wall-mounted Type |
| Velocity Range:±0.09ft/s ~ ±39ft/s (±0.03m/s ~ ±12m/s) | |
| Accuracy :±1% of the measure value | |
| Repeatability:0.2% of the measure value | |
| Display:240*128 back lit LCD | |
| Power Supply: 10~36VDC/AC90~245V | |
| Transmitter Enclosure: IP65, ABS (Temperature: -20℃~50℃) | |
| Output: OCT pulse output 0-10KHz, Relay output, 4-20mA for option | |
| Communication: RS232,RS485 | |
| Code | Output |
| 1 | OCT,Relay,RS232/RS485,4-20mA |
| 2 | OCT,Relay,RS232/RS485,4-20mA, RTD |
| Code | Transducer |
| TT01 | Clamp-on, IP68. Operating temperature:-40 ℉ ~ +176 ℉(-40℃ ~ +80 ℃) |
| TT03 | Clamp-on, IP68. Operating temperature:-40 ℉ ~ +266℉(-40℃ ~ +130 ℃) |
| TT05 | Insertion, IP68. Operating temperature:-40 ℉ ~ +266 ℉(-40℃ ~ +130 ℃) |
| Code | Transducer Cable Length |
| 030 | Standard length 30ft (9m) |
| XXX | Max length to 1000ft (300m) |
| Code | Temperature Transducer |
| PT1000 | PT1000 temperature transducer+RTD module(option) |
| Code | Data Logger |
| SD | SD card(8G)+ SD card module(option) |
