Portable 12m/s DN25 Clamp On Ultrasonic Flow Meter

Product Details:

Place of Origin:	China
Model Number:	ML-6100P

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotation
Packaging Details:	In carton
Delivery Time:	7-10 working days
Payment Terms:	T/T
Supply Ability:	10000 units per month

Contact Now

Detailed Product Description

Velocity Range:	0.03m/s~12m/s	Accuracy:	±1%
Display:	240*128 Back Lit LCD	IP Class:	Transmitter: IP65 Transducer: IP68
Pipe Size:	DN25-DN1200	Power Supply:	Rechargeable Battery Powered
Highlight:	12m/s Ultrasonic Flow Meter

Portable Clamp On Ultrasonic Flow Meter
I. Introduction

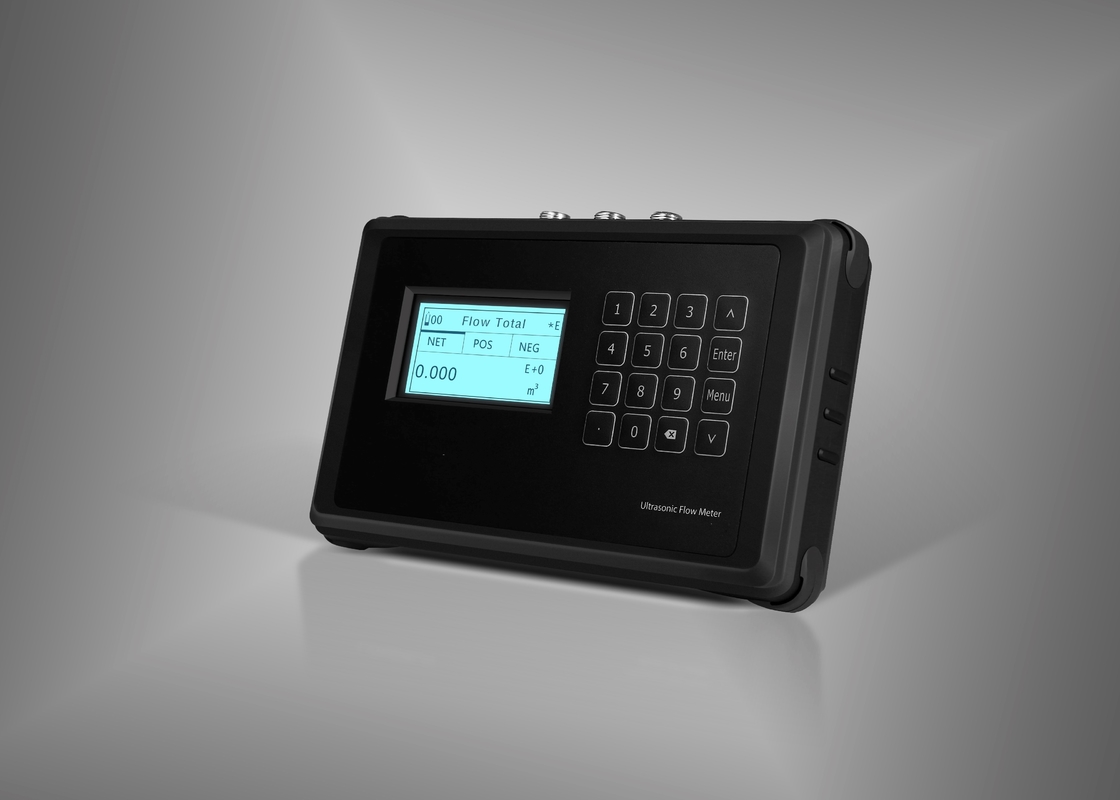

ML-6100P is a full function portable transit-time ultrasonic flow meter. No matter you want to quickly verify the flow reading of another meter or to data log flow system values over an extended time period, the MELAN’s 6100P is the suitable tool.

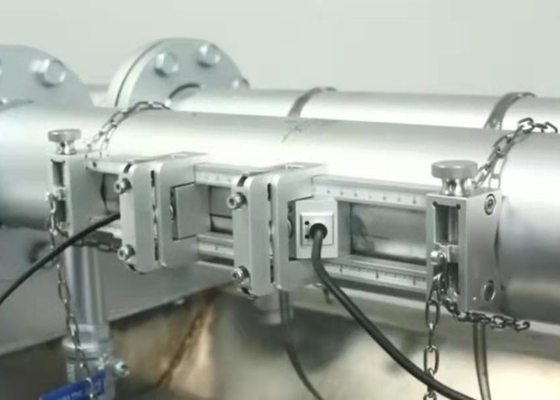

The 6100P portable meter has the clamp on transducers no tapping or cutting is required, just clamp outside of the pipe. The meter can be easily moved and installed in different pipe and convenient to carry site to site.Its portability makes it an excellent choice for measuring flows throughout the plumbing infrastructure to verify sensor, pump and valve performance.

II. Working Principle
The external clamp type or pipe section type ultrasonic flow meter is based on the principle of "velocity difference method" to measure the liquid flow in the pipe. It adopts advanced multi pulse technology, digital signal processing technology and error correction technology, so that the flow meter can adapt to the environment of industrial field, and the measurement is more convenient, economical and accurate. The products have reached the advanced level at home and abroad, and can be widely used in the fields of petroleum, chemical industry, metallurgy, electric power, water supply and drainage, etc.

III. Specification

Performance
Velocity Range	±0.09ft/s ~ ±39ft/s (±0.03m/s ~ ±12m/s)
Accuracy	±1% of measured value
Repeatability	0.2% of measured value
Linearity	±1%
Pipe Size	DN25~DN1200(A pair of sensors)
Function
Output	Analog output: 4~20mA, max load 750Ω.
Output	Pulse output: 0~10KHz
Communication	RS485 Modbus
Power Supply	Rechargeable Lithium Battery Power,3000mAh
Display	240*128 back lit LCD
Temperature	Transmitter: -14℉~140℉(-20℃~60℃)
	Transducer:-40℉~176℉(-40℃~80℃,D1)
	Transducer:-40℉~266℉(-40℃~130℃,D1U)
Humidity	Up to 99% RH,non-condensing
Physical
Transmitter	NEMA13, IP54
Transducer	Encapsulated design,IP68
	Double-shielded transducer cable
	Standard/maximum cable length:30ft/1000ft(9m/300m)

IV. Configuration

Model	Transmitter
ML-6100P	PortableType
	Velocity Range:±0.09ft/s ~ ±39ft/s (±0.03m/s ~ ±12m/s)
	Accuracy :±1% of the measure value
	Repeatability:0.2% of the measure value
	Display:240*128 back lit LCD
	Internal Lithium Power Supply: 3000mA
	Transmitter Enclosure: IP54
	Output: OCT pulse output 0-10KHz, Relay output, 4-20mA for option
	Communication: RS485
Code	Type of Trnansmitter
1	Ultrasonic Flow Meter
2	Ultrasonic Energy / BTU Meter(RTD)
Code	Transducer
D1	Clamp-on, IP68. Operating temperature:-40 ℉ ~ +176 ℉(-40℃ ~ +80 ℃)
D1U	Clamp-on, IP68. Operating temperature:-40 ℉ ~ +266℉(-40℃ ~ +130 ℃)
Code	Type of Mounting Bracket
ST	Single guide mounting type bracket
DT	Double guide mounting type bracket
Code	Transducer Cable Length
P5	Standard length 16ft (5m)
PXX	XX is the length you need for cables, Maximum length is up to 30m.
Code	Temperature Transducer
PT1000	PT1000 temperature transducer+RTD module(option)
