RS232 Waterproof IP68 Clamp On Ultrasonic Flow Meter

Waterproof IP68 Ultrasonic Flow Meter Flowmeter

I. Introduction

ML-6100S is a wall-mount, clamp- on type ultrasonic flow meter which uses the transit-time technology. Designed using FPGA chip and low-voltage broadband pulse transmission.Both clamp on type sensors and insertion type sensors are available.

ML-6100S can be used in conjunction with the RTD module and the PT1000 temperature sensor to become an energy meter for measuring the heat and cold consumption of heating pipelines and air-conditioning refrigeration pipelines;

The PT1000 uses high-temperature resistance lines, imported movements,and its sensitivity and working conditions durability are much higher than those of domestic PT100.

• External clamping flow meter sensor, simple and convenient installation, high flexibility
• Integrated design and manufacturing, the true meaning of IP68 waterproof
• Hidden pipe design, more beautiful after installation

II. Working Principle

The clamp-on or tube-segment ultrasonic flow meter is a meter that measures the flow of liquid in a round tube based on the principle of the "speed difference method". It uses advanced multi-pulse technology, signal digital processing technology and error correction technology to make the flow meter more adaptable to the environment of the industrial site, and the measurement is more convenient, economical and accurate. The products have reached the advanced level at home and abroad, and can be widely used in petroleum, chemical, metallurgy, electric power, water supply and drainage fields.

III. Straight Pipe Demand

We suggest avoiding the valve, T-branch pipe and elbows if the condition allow.

Please satisfied the hardest position installation requirements when you face more than one interfering resource.

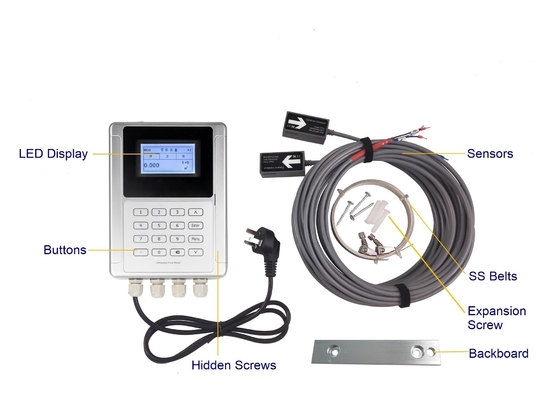

IV. Configuration
