MELAN MEASUREMENT & CONTROL INSTRUMENTS (SHANGHAI) CO., LTD.
 |
| Place of Origin: | China |
| Model Number: | ML-6100S |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotation |
| Packaging Details: | In carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 units per month |
| Velocity Range: | 0.03m/s~12m/s | Accuracy: | ±1% |
|---|---|---|---|
| Output: | 4-20mA, Pulse, RS232, RS485 | Temperature: | -40C~130C |
| Pipe Size: | DN25-DN1200 | Power Supply: | 10~36VDC/AC90~245V |
| Highlight: | BTU Flow Meter |
||

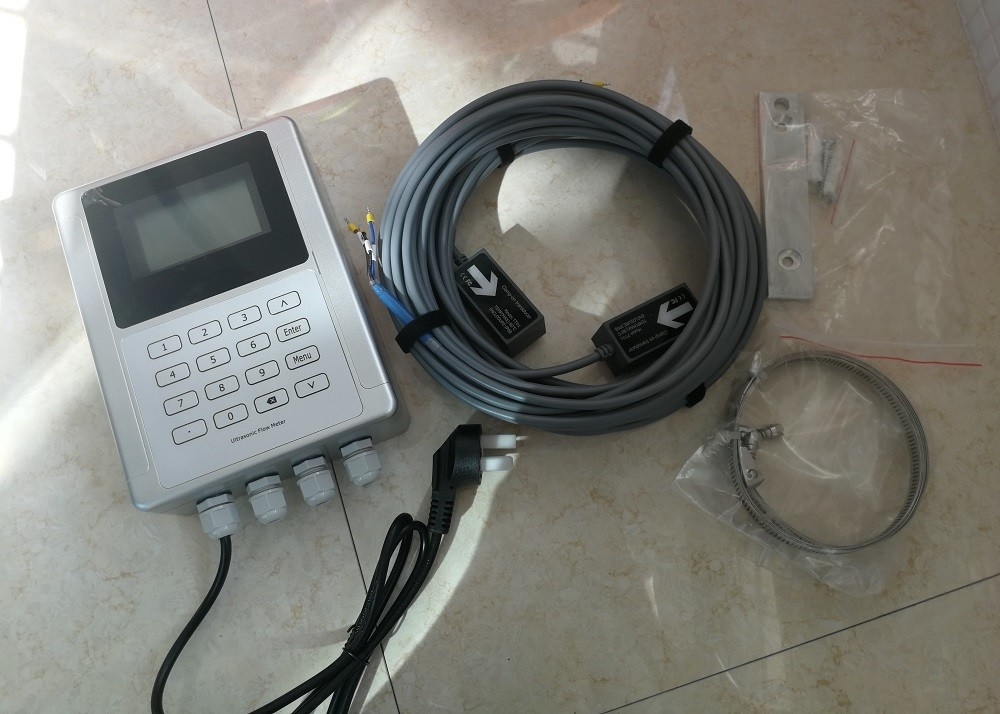

Clamp On Ultrasonic BTU Flow Meter Data Logger
I. Introduction
ML-6100S is a wall-mounted clamped ultrasonic Flowmeter using jet lag technology. The transmission is designed with FPGA chip and low voltage broadband pulse.Two can provide clamping sensor and plug-in sensor.
The parallel operation of positive, negative and net flow accumulators has the capacity of scale factor (span) and BTU.The pulse output and frequency output of the accumulator are transmitted through the open circuit of the relay and the collector.
II. Configuration
| Model | Transmitter |
| ML-6100S | Wall-mounted Type |
| Velocity Range:±0.09ft/s ~ ±39ft/s (±0.03m/s ~ ±12m/s) | |
| Accuracy :±1% of the measure value | |
| Repeatability:0.2% of the measure value | |
| Display:240*128 back lit LCD | |
| Power Supply: 10~36VDC/AC90~245V | |
| Transmitter Enclosure: IP65, ABS (Temperature: -20℃~50℃) | |
| Output: OCT pulse output 0-10KHz, Relay output, 4-20mA for option | |
| Communication: RS232,RS485 | |
| Code | Output |
| 1 | OCT,Relay,RS232/RS485,4-20mA |
| 2 | OCT,Relay,RS232/RS485,4-20mA, RTD |
| Code | Transducer |
| TT01 | Clamp-on, IP68. Operating temperature:-40 ℉ ~ +176 ℉(-40℃ ~ +80 ℃) |
| TT03 | Clamp-on, IP68. Operating temperature:-40 ℉ ~ +266℉(-40℃ ~ +130 ℃) |
| TT05 | Insertion, IP68. Operating temperature:-40 ℉ ~ +266 ℉(-40℃ ~ +130 ℃) |
| Code | Transducer Cable Length |
| 030 | Standard length 30ft (9m) |
| XXX | Max length to 1000ft (300m) |
| Code | Temperature Transducer |
| PT1000 | PT1000 temperature transducer+RTD module(option) |
| Code | Data Logger |
| SD | SD card(8G)+ SD card module(option) |
Standard model: ML-6100S-1-TT01-030
Description: Standard clamp-on type ultrasonic flow meter, OCT, Relay,
RS485, 4-20mA, 30ft cable with TT01 transducers
IV. Applications
Ultrasonic flowmeters are ideal for applications involving dirty process fluids that are water-based or sonically conductive. Unlike electromagnetic meters, they can measure flows of non-conductive fluids. They are also ideal for applications where chemical compatibility is essential.
Contact Person: Ms. Nancy Zhao
Tel: 0086-21-57652429
Fax: 0086-21-57652430
