MELAN MEASUREMENT & CONTROL INSTRUMENTS (SHANGHAI) CO., LTD.

|
| Place of Origin: | China |
| Model Number: | MLF |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | In Carton or Wooden Box |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500pcs per month |
| Product Name: | Slurry Magnetic Flow Meter In Mining Industry | Accuracy: | 0.5% |
|---|---|---|---|
| Pipeline Diameter: | DN50 | Electrode: | 316L SS, Hb, Ta, Ti, Hc, Tungsten Carbide, Others |
| Output: | 4-20mA / Pulse / RS485 | IP Class: | IP65/IP68 |
| Highlight: | Slurry Magnetic Flow Meter |
||

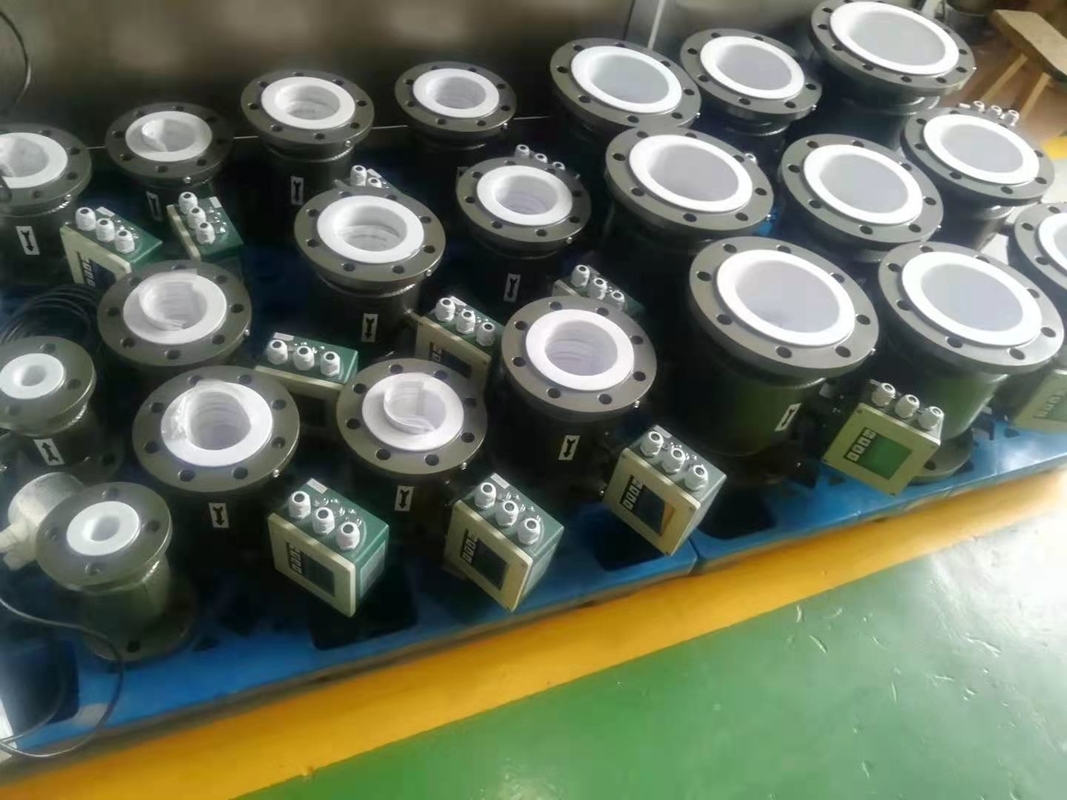

Slurry Magnetic Flow Meter In Mining Industry
1.Working Principle
The principle of the sensor is based on Faraday’s law of electromagnetic induction.
It is installed a pair of detection electrodes on the pipe wall,where the measurement pipe axis and magnetic field lines are vertical. When the conductive liquid cuts magnetic field lines and produces induced electromagnetic force.Which can be measured by the two electrodes on the meter pipe.The result can be calculated by formula: Induced electromotive force,(flow signal) E=KBDV
E——Induced electromotive force,V；
K——meter constant；
B——Magnetic flux density,T；
D——Internal diameter of measuring pipe,m；
V——Average velocity of pipe section,m/s.
MLF Series Electromagnetic Flow Meter
Assume the volume of liquid as qv(m3/s),qv=πD2V/4),so in the formula E=(4kB/πD)qv=kqv,
K is meter constant,K=4kB/πD.
2. Specification
| MLF Type | Divided Type | Integrated Type | Explosive Proof Integrated Type | Battery Powered Type | Heat Energy Type |
| Accuracy | ±0.2% or ±0.5% | ||||
| Pipeline Diameter | DN10-DN2000 | DN10-DN600 | DN25-DN2000 | ||
| Flange | GB, ANSI, JIS, BS, Others | ||||
| Pressure | DN10-DN600 1.0 1.6 2.5 4.0MPa | ||||
| DN700-DN2000 0.6 1.0 1.6MPa | |||||
| Liner Material | CR, PTFE, PU, Hard Rubber, PFA, FEP(F46) | ||||
| Conductivity | ≥5µs/cm(Please contact us if it is less than 5µs/cm) | ||||
| Electrode | 316L SS, Hb, Ta, Ti, Hc, Tungsten Carbide, Others | ||||
| Protection Class | IP65, IP66, IP67, IP68 | ||||
| Medium Temperature | -25~180℃ (Please refer to liner material) |
-25~80℃(Please refer to liner material) | -25~180℃ (Please refer to liner material) |
||
| Ambient Temperature for Accuracy Influence | <±0.1%/10℃ or <±0.25%/10℃ at the ambient temperature of -25~60℃ | ||||
| Repetability | ≤±0.1% or ±0.25% | ||||
| Analog Output Error | ≤±0.02mA | ||||
| Velocity | 0.3~10m/s | ||||
| Electrical connection | M20x1.5 Seal Cartridge, GB1/2, NPT1/2 | ||||
| Output | 4-20mA, Pulse, RS485, Hart, Profibus | ||||
3. Configuration
| MLF Series Electromagnetic Flow Meter Configuration | |||||||||||||||||||||||
| Model | MLF | ||||||||||||||||||||||
| Sensor Installation | S | Flange Type Sensor | |||||||||||||||||||||
| C | Insertion Type Sensor | ||||||||||||||||||||||
| O | Others | ||||||||||||||||||||||
| Pipeline Diameter | 10 | 10mm | |||||||||||||||||||||
| 15 | 15mm | ||||||||||||||||||||||
| 20 | 20mm | ||||||||||||||||||||||
| ...... | |||||||||||||||||||||||
| 2000 | 2000mm | ||||||||||||||||||||||
| Electrode Installation | F | Standard Fixed Type | |||||||||||||||||||||
| Electrode Material | A | 316L SS | |||||||||||||||||||||
| B | Hb | ||||||||||||||||||||||
| C | Ta | ||||||||||||||||||||||
| D | Ti | ||||||||||||||||||||||
| E | Hc | ||||||||||||||||||||||
| F | Tungsten Carbide | ||||||||||||||||||||||
| G | Others | ||||||||||||||||||||||
| Liner Material | R | Rubber | |||||||||||||||||||||
| P | PTFE | ||||||||||||||||||||||
| O | Others | ||||||||||||||||||||||
| Pipe Material | B | 304 SS (Standard) | |||||||||||||||||||||
| C | 316 SS | ||||||||||||||||||||||
| Flange Type | G | GB (Standard) | |||||||||||||||||||||
| A | ANSI | ||||||||||||||||||||||
| J | JIS | ||||||||||||||||||||||
| B | BS | ||||||||||||||||||||||
| O | Others | ||||||||||||||||||||||
| Flange Material | A | 304 SS | |||||||||||||||||||||
| B | 316 SS | ||||||||||||||||||||||
| C | #20 Carbon Steel (Standard) | ||||||||||||||||||||||
| Cover Material | D | 304 SS | |||||||||||||||||||||
| E | 316 SS | ||||||||||||||||||||||
| F | Carbon Steel+ Epoxy Metallic Paint (Standard) | ||||||||||||||||||||||
| Matching Flange | 0 | Without Matching Flange (Standard) | |||||||||||||||||||||
| 1 | With Matching Flange | ||||||||||||||||||||||
| Ground Ring | 0 | Without Ground Ring (Standard) | |||||||||||||||||||||
| 1 | With Ground Ring | ||||||||||||||||||||||
| Rated Pressure | 10 | 1.0MPa | |||||||||||||||||||||
| 16 | 1.6MPa | ||||||||||||||||||||||
| 25 | 2.5MPa | ||||||||||||||||||||||
| 40 | 4.0MPa | ||||||||||||||||||||||
| Working Temperature | E | ≤60℃ | |||||||||||||||||||||
| H | ≤180℃(Divided Type) | ||||||||||||||||||||||
| Type | I | Integrated Type | |||||||||||||||||||||
| D | Divided Type | ||||||||||||||||||||||
| Output | P | Pulse | |||||||||||||||||||||
| A | 4-20mA | ||||||||||||||||||||||
| G | RS485 | ||||||||||||||||||||||
| H | Hart | ||||||||||||||||||||||
| Q | Others | ||||||||||||||||||||||
| Power Supply | 0 | 220VAC | |||||||||||||||||||||
| 1 | 24VDC | ||||||||||||||||||||||
| 2 | Battery-powered | ||||||||||||||||||||||
| Protection Class | 0 | IP65 (Integrated/Divided Type) | |||||||||||||||||||||
| 1 | IP67 (Divided Type) | ||||||||||||||||||||||
| 2 | IP68 (Divided Type) | ||||||||||||||||||||||
| Other Features | R | Heat Energy Function | |||||||||||||||||||||
| P | With PT1000 | ||||||||||||||||||||||
| B | Without PT1000 | ||||||||||||||||||||||
| Explosion Proof | 0 | None | |||||||||||||||||||||
| EX | Explosive Proof | ||||||||||||||||||||||
