MELAN MEASUREMENT & CONTROL INSTRUMENTS (SHANGHAI) CO., LTD.
 |
| Place of Origin: | China |
| Model Number: | ML-F8 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotation |
| Packaging Details: | In carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 units per month |
| Product Name: | IP54 25mm Pipe Clamp On Ultrasonic Flow Meter 20mA | Pipe Size: | 25mm Outside |
|---|---|---|---|
| Output: | 4-20mA, OCT, RS485 | Temperature: | 0~50C |
| IP Class: | IP54 | Power Supply: | 24VDC |
| Highlight: | 25mm Pipe Ultrasonic Flow Meter |
||

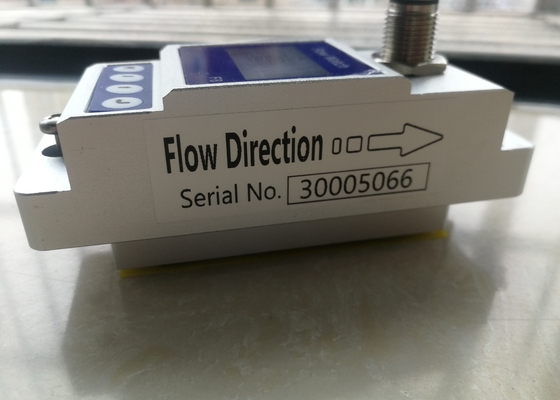

IP54 25mm Pipe Clamp On Ultrasonic Flow Meter 20mA
I INTRODUCTION
ML-F8 is very unique in its structural design. It uses a circular magnetic steel to achieve automatic connection during installation.It takes only 2-3 minutes to complete the whole process from installation to measurement. It also adopts the current popular OLED display, which makes it easy to read in low light conditions.
II. SPECIFICATION
| Model | ML-F8 |
| Velocity Range | 0.1 m/s ~ 5.0 m/s |
| Accuracy | ± 2.0% |
| Repeatability | 0.80% |
| Pipe Size | DN15,DN20,DN25,DN32,DN40,DN50 |
| Data Storage | Daily, Monthly, Yearly Totalizer |
| Analog output | 4~20mA, Maximum load: 600Ω |
| Alarm output | OCT, Upper and lower limit alarm function (for option) |
| Communication | RS485,support Modbus communication protocol |
| Power Supply | 24VDC |
| Cable Length | 1.8m |
| Keypad | Four light touch buttons |

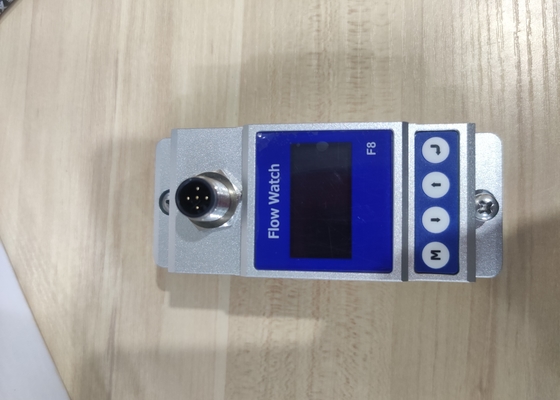

| Screen | OLED 128*64 screen display |
| Units | Metric and imperial units are available Cubic Meters(m3), Liters(L),USA Gallons(GAL)/hour, USA Gallons(GAL)/min Default unit setting: m3/h |
| Totalizer | Six bit digit |
| Piper Material | Stainless steel pipe, carbon steel pipe, PVC |
| Case Material | Aluminum alloy |
| Environment Temp. | 0℃-50℃ |
| Medium Temp. | 0℃-50℃ |
| Environment Humidity | 0-95% relative humidity, without condensation |
| IP Grade | IP54 |

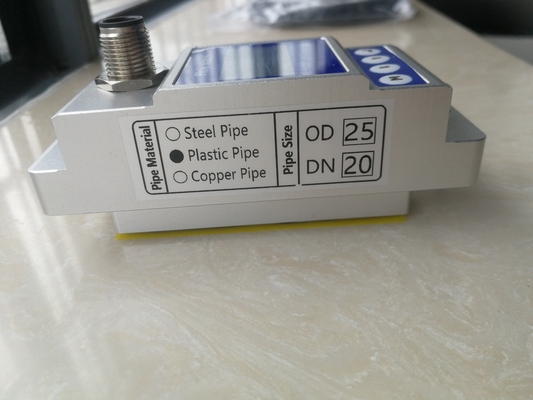

III. PIPE SPECIFICATION
| Size | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 |
| Nominal Pipe Diameter Size |
15mm | 20mm | 25mm | 32mm | 40mm | 50mm |
| Pipe OD | 20mm | 25mm | 32mm | 40mm | 50mm | 63mm |
| Pipe ID | 15mm | 19mm | 26mm | 33mm | 43mm | 55mm |
| Inch | 1/2’’ | 3/4’’ | 1’’ | 1.2’’ | 1.5’’ | 2’’ |

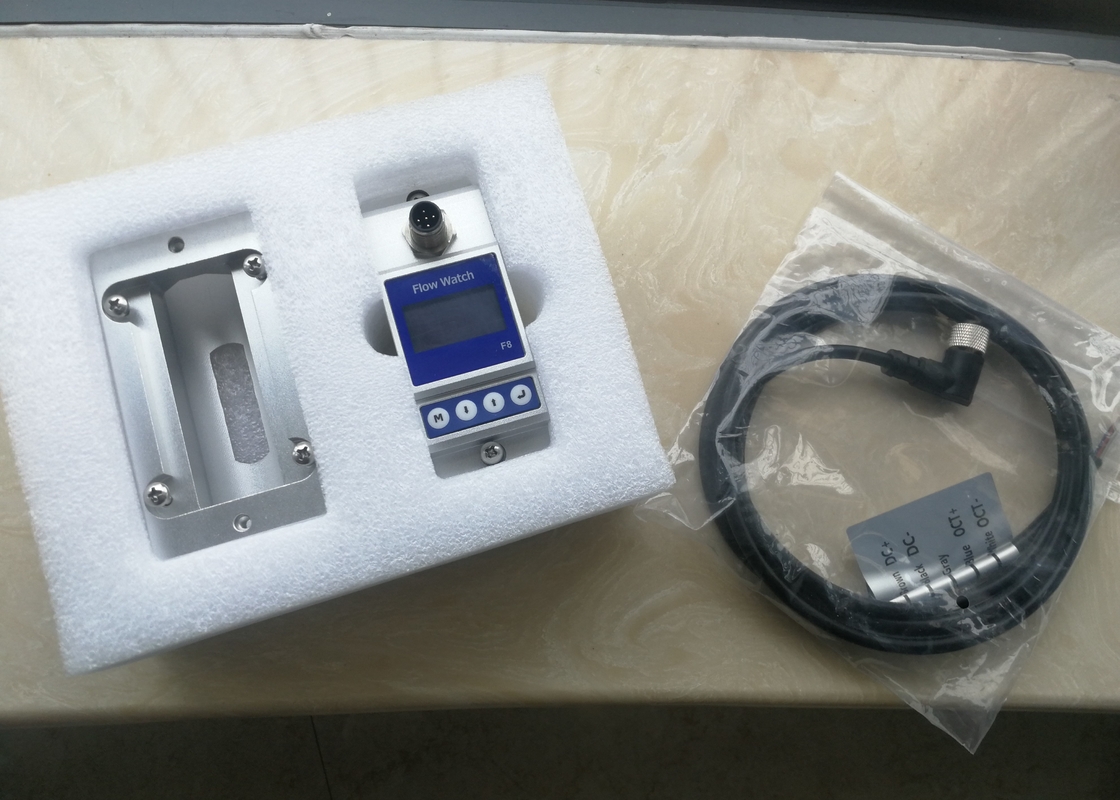

IV. COMPONENT PARTS
