1.6MPa Oil Gauge Pressure Transmitter Water Supply Pressure Transmitters

                                                  1.6MPa Oil Pressure Transmitter 4-20mA Sensor Water Supply Pressure Transmitters
1. Introduction

ML2000A Pressure transmitter is a device for pressure measurement of gases or liquids. Pressure is an expression of the force required to stop a fluid from expanding, and is usually stated in terms of force per unit area. A pressure transmitter usually acts as a transducer; it generates a signal as a function of the pressure imposed. For the purposes of this article, such a signal is electrical.

Pressure sensors are used for control and monitoring in thousands of everyday applications. Pressure sensors can also be used to indirectly measure other variables such as fluid/gas flow, speed, water level, and altitude. Pressure sensors can alternatively be called pressure transducers, pressure transmitters, pressure senders, pressure indicators, piezometers and manometers, among other names.a


2. Technical Parameters

• Power Supply: 12VDC~36VDC, Typical 24VDC
• Signal Output: 0~5V,1~5V, 4-20mA, 0-10mA, 1-10KHz
• Pressure Range: -0.1~0~0.02~100MPa

• Compensation Temperature: -10~70℃

          Medium Temperature: -40~125℃
          Ambient Temperature: -40~85℃

• Shell Protection: IP65
• Pressure Type: Meter Pressure, Absolute Pressure, Sealing Pressure
• Accuracy: ±0.1%, ±0.3%, ±0.5%
• Stability: ≤±0.5%FS per year
• Zero Temperature Drift: ±0.03%FS per year
• Sensitivity Temperature Drift: ±0.03%FS
• Overload Pressure: 200%FS
• Fixed Frequency: 5KHz~650KHz


3. Configuration

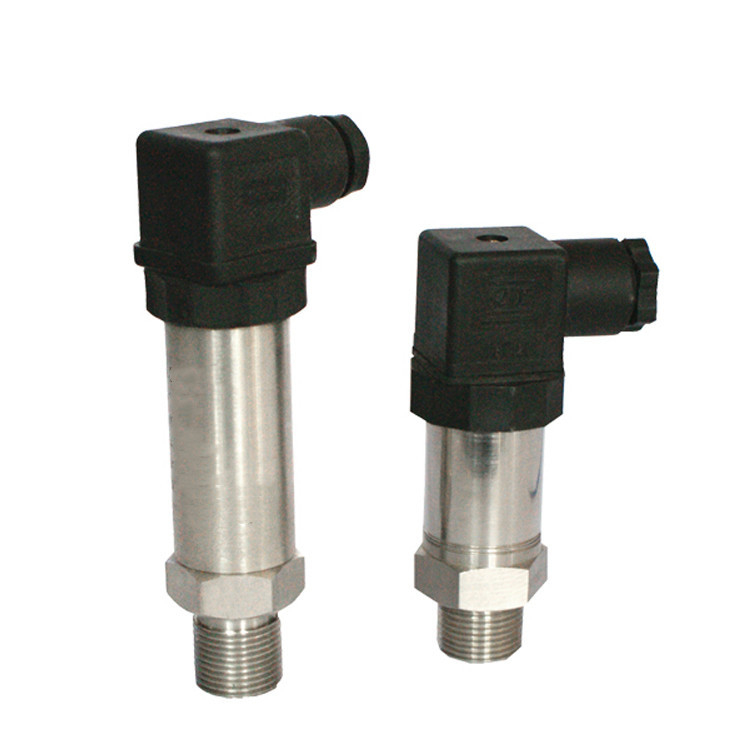

4. Product Photos
