MELAN MEASUREMENT & CONTROL INSTRUMENTS (SHANGHAI) CO., LTD.
 |
| Place of Origin: | China |
| Model Number: | ML3000S |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | InCarton Packing |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs per month |
| Product Name: | Differential Pressure Transmitter | Application: | Liquid, Gas, Steam |
|---|---|---|---|
| Accuracy: | 0.5% Or 0.075% | Static Pressure: | 4, 10, 25, 32MPa |
| Process Connection: | Flange Type | Sensor: | Capacitive Sensor |
| Highlight: | Gas Absolute DP Transmitter |
||

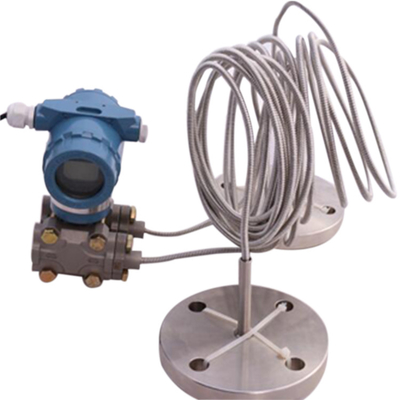

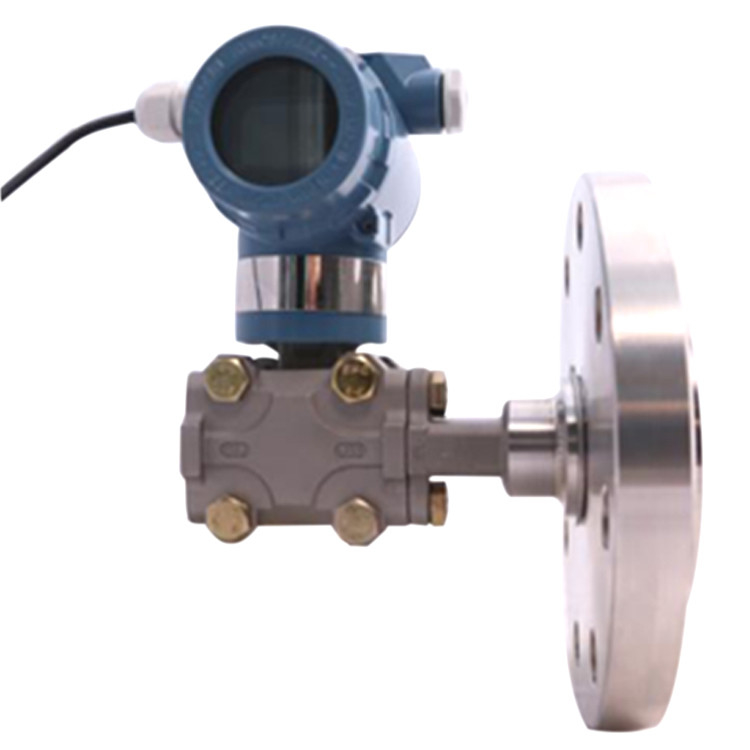

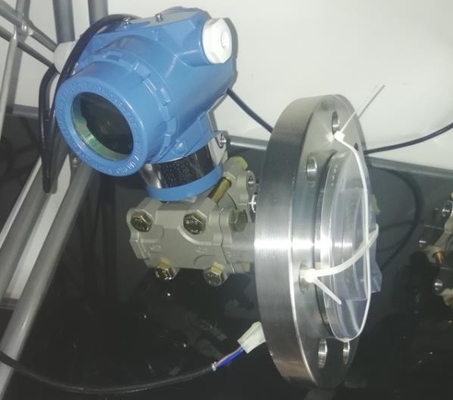

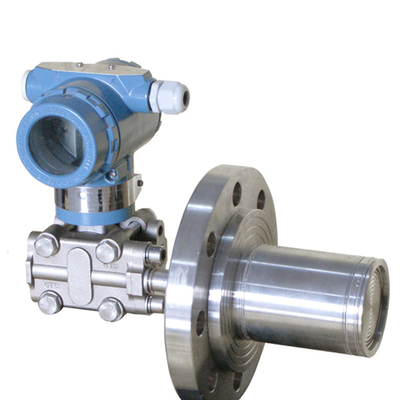

Gas Absolute DP Transmitter Single Flange Differential Pressure Transmitter
1. Introduction
Differential pressure liquid level transmitter has single flange and double flange.
2. Configuration
| Type | Specification Code | Illustration | ||
| ML3¨¨¨S | --------------------------------- | Remote Transmission Differential Pressure & Pressure Transmitter | ||
| Accuracy | 3-------------------------------- | ±0.5% | ||
| 0-------------------------------- | ±0.075% | |||
| Output | 5-------------------------------- | 4-20mA, HART | ||
| Sensor | 1-------------------------------- | Capacitive Sensor | ||
| S-------------------------------- | ||||
| Connection Medium Mode | Y-------------------------------- | Remote Transmission Mounting Flange Type | ||
| Measuring Range | 4-------------------------------- | 0-6.2~37.4KPa(0-635~3810mmH2O) | ||
| 5-------------------------------- | 0-31.1~186.8KPa(0-3175~19050mmH2O) | |||
| 6-------------------------------- | 0-117~690KPa(0-1.2~7Kgf/cm2) | |||
| 7-------------------------------- | 0-0.345~2.068MPa(0-3.5~21Kgf/cm2) | |||
| 8-------------------------------- | 0-1.170~6.890MPa(0-12~70Kgf/cm2) | |||
| Remote Transmission Device | S1-------------------------------- | One remote transmission device Two remote transmission device |
Order according to table I,II,III,IV,V,VI | |
| S2-------------------------------- | ||||
| Display Header | D-------------------------------- | Multiple Parameters and Methods Digital LED Display Header | ||
| N-------------------------------- | No Display Header | |||
| Electrical Interface | 5-------------------------------- | M20*1.5 Waterproof Concentrator | ||
| Additional Type | -NF1---------------------------- | Ex-proof Security Certification: Exd II CT6 | ||
| -NS1---------------------------- | Intrinsic Safety Certification: Exi II CT4 | |||
| -M------------------------------- | Other requirements are available | |||
| Remarks: | ||||
| e.g.:ML3051SY-7S2D5-NF1(Basic Type Configuration) | ||||
| 1199RF21A11A21-30(Refer to Table I~VI) | ||||
3. Dimension
Dimension of Differential Pressure/Pressure Transmitter with Remote Device
4. Pressure Level Transmitter
Gauge Pressure Transmitter
Differential Pressure Transmitter
Capacitance Level Transmitter
Hydrostatic Level Transmitter
Submersible Level Transmitter
