MELAN MEASUREMENT & CONTROL INSTRUMENTS (SHANGHAI) CO., LTD.
 |
| Place of Origin: | China |
| Model Number: | F8 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotation |
| Packaging Details: | In carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 units per month |
| Pipe Size: | DN10-50 | Output: | 4-20mA, OCT, RS485 |
|---|---|---|---|
| Temperature: | Max. 50C | IP Class: | IP54 |
| Power Supply: | 24VDC | Product Name: | Clamp On Ultrasonic Flow Meter Heat Meter DN25 ID |
| Highlight: | DN25 Clamp On Ultrasonic Flow Meter |
||
Clamp On Ultrasonic Flow Meter Heat Meter DN25 ID
I. INTRODUCTION
ML-F8 is very unique in its structural design. It uses a circular magnetic steel to achieve automatic connection during installation.It takes only 2-3 minutes to complete the whole process from installation to measurement. It also adopts the current popular OLED display, which makes it easy to read in low light conditions.
ML-F8 is widely used in the production process for flow measurement and monitoring. The application of the product continuously and effectively controls the flow of the fluid, so as to improve the yield of the product and even save the input of the personnel, bringing benefits to the production enterprise.
II. FEATURES
III. SPECIFICATION
| Model | ML-F8 |
| Velocity Range | 0.1 m/s ~ 5.0 m/s |
| Accuracy | ± 2.0% |
| Repeatability | 0.80% |
| Pipe Size | DN15,DN20,DN25,DN32,DN40,DN50 |
| Data Storage | Daily, Monthly, Yearly Totalizer |
| Analog output | 4~20mA, Maximum load: 600Ω |
| Alarm output | OCT, Upper and lower limit alarm function (for option) |
| Communication | RS485,support Modbus communication protocol |
| Power Supply | 24VDC |
| Cable Length | 1.8m |
| Keypad | Four light touch buttons |
| Screen | OLED 128*64 screen display |
| Units | Metric and imperial units are available Cubic Meters(m3), Liters(L),USA Gallons(GAL)/hour, USA Gallons(GAL)/min Default unit setting: m3/h |
| Totalizer | Six bit digit |
| Piper Material | Stainless steel pipe, carbon steel pipe, PVC |
| Case Material | Aluminum alloy |
| Environment Temp. | 0℃-50℃ |
| Medium Temp. | 0℃-50℃ |
| Environment Humidity | 0-95% relative humidity, without condensation |
| IP Grade | IP54 |
IV. PIPE SPECIFICATION
| Size | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 |
| Nominal Pipe Diameter Size | 15mm | 20mm | 25mm | 32mm | 40mm | 50mm |
| Pipe OD | 20mm | 25mm | 32mm | 40mm | 50mm | 63mm |
| Pipe ID | 15mm | 19mm | 26mm | 33mm | 43mm | 55mm |
| Inch | 1/2’’ | 3/4’’ | 1’’ | 1.2’’ | 1.5’’ | 2’’ |

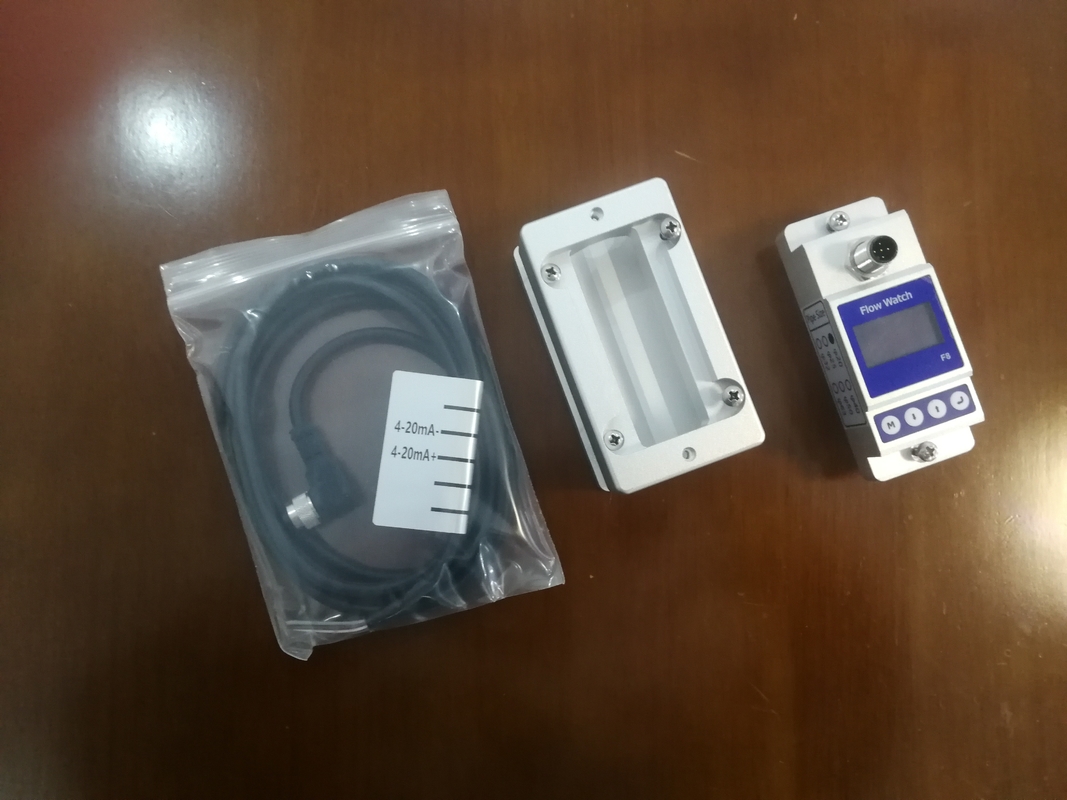

V. COMPONENT PARTS
VI. Application
