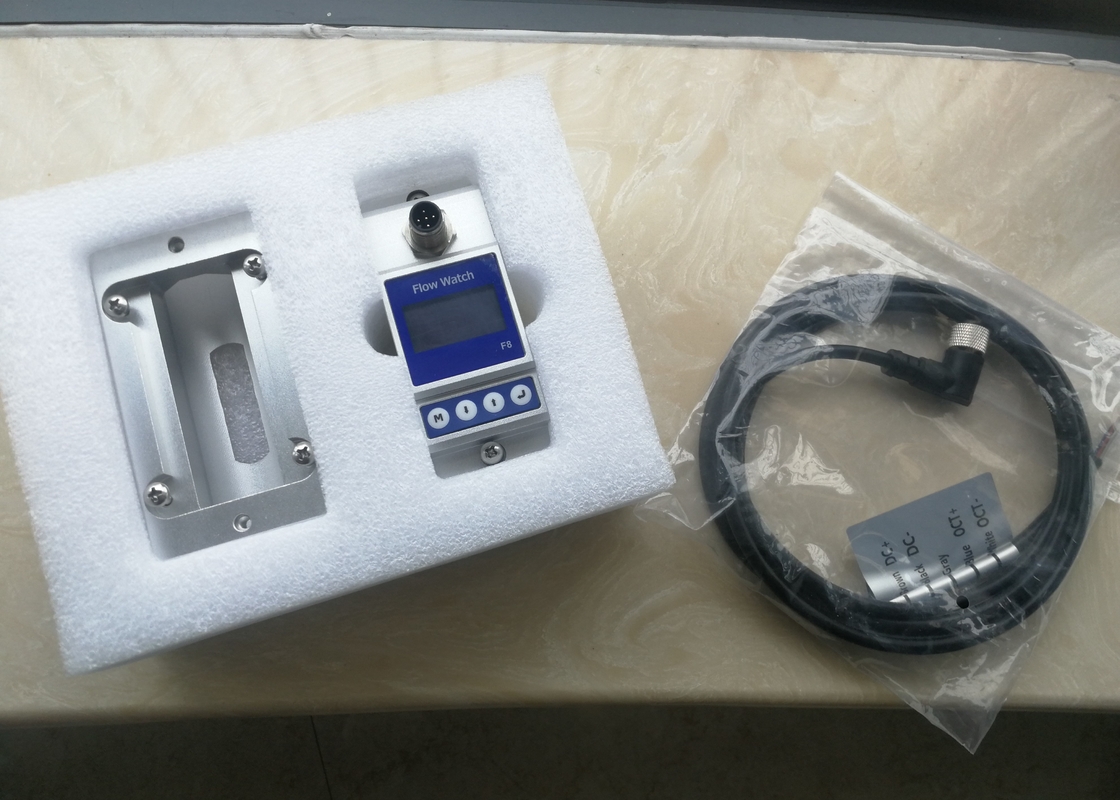

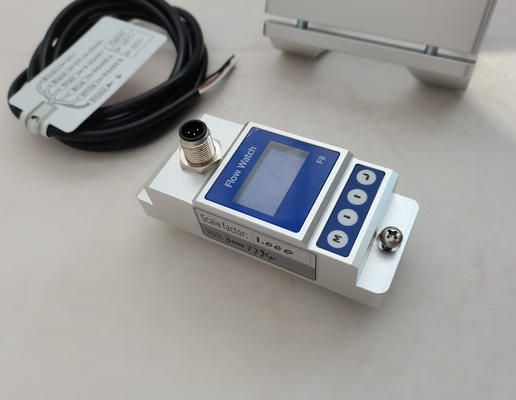

Compact Clamp On Ultrasonic Flow Meter with 1.8m Cable

Compact Clamp On Ultrasonic Flow Meter with 1.8m Cable

I. INTRODUCTION

ML-F8 is very unique in its structural design. It uses a circular magnetic steel to achieve automatic connection during installation.It takes only 2-3 minutes to complete the whole process from installation to measurement. It also adopts the current popular OLED display, which makes it easy to read in low light conditions.

ML-F8 is widely used in the production process for flow measurement and monitoring. The application of the product continuously and effectively controls the flow of the fluid, so as to improve the yield of the product and even save the input of the personnel, bringing benefits to the production enterprise.

• Clamp on type, no need to cut the pipe or do any other changes.
• No professional product knowledge required, installation and measurement can be done based on the guide.
• No moving parts or pressure changes involved, installation can be done without stop provide.

II. SPECIFICATION

Model: ML-F8

Velocity Range: 0.1 m/s ~ 5.0 m/s

Accuracy: ± 2.0%

Repeatability: 0.80%

Analog output: 4~20mA, Maximum load: 600Ω

Alarm output: OCT, Upper and lower limit alarm function (for option)

Communication: RS485,support Modbus communication protocol

Power Supply: 24VDC

Cable Length: 1.8m

Keypad: Four light touch buttons

Screen: OLED 128*64 screen display

Units: Metric and imperial units are available

Cubic Meters(m3), Liters(L),USA Gallons(GAL)/hour, USA Gallons(GAL)/min
Default unit setting: m3/h

Totalizer: Six bit digit

Piper Material: Stainless steel pipe, carbon steel pipe, PVC

Case Material: Aluminum alloy

Environment Temp.:0℃-50℃

Medium Temp.:0℃-50℃

Environment Humidity: 0-95% relative humidity, without condensation

III. PIPE SPECIFICATION

IV. INSTALLATION STEPS
