MELAN MEASUREMENT & CONTROL INSTRUMENTS (SHANGHAI) CO., LTD.

|
| Place of Origin: | China |
| Model Number: | MLF |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | In Carton or Wooden Box |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500pcs per month |
| Product Name: | Water Electromagnetic Flowmeter | Pipeline Diameter: | 25-2000 |
|---|---|---|---|
| Accuracy: | 0.5% | Output: | 4-20mA / Pulse / RS485 |
| Electrode: | 316SS, Hc, Ta, Ti, Others | IP Class: | IP65/IP68 |
| Power Supply: | 220VAC/110VAC, Battery | Electrode Material: | 316L, HB, HC, Pt, Ti |
| Liner Material: | FEP, PTFE, PFA, PU, Rubber | Pressure: | 0.6MPa，1.0MPa，1.6MPa，2.5MPa，4.0MPa |

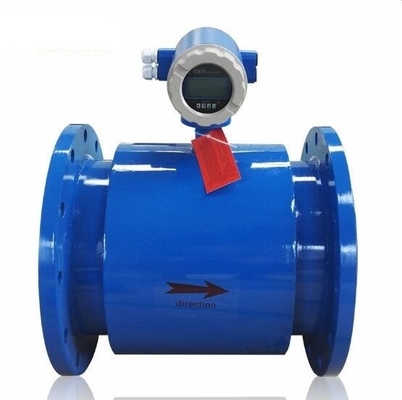

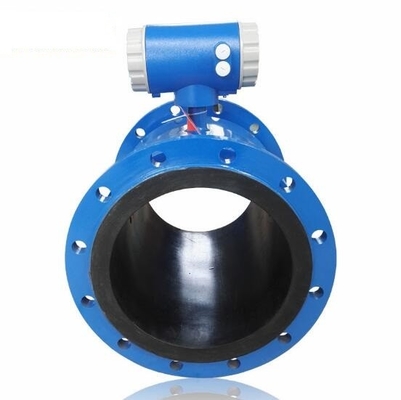

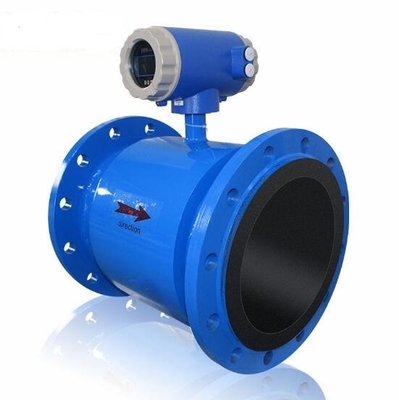

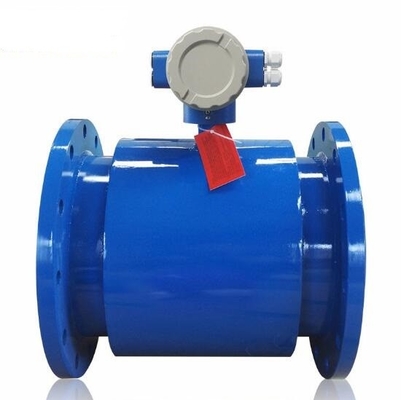

DN25 DN800 Water Flow Meter Magnetic Flowmeter Split Type PTFE Liner
1. Introduction
MLF electromagnetic flowmeter works according to Faraday's law of electromagnetic induction, and is composed of sensors and converters. Used to measure the conductivity of liquid or solid. In general, its conductivity should be greater than 5μs/cm (tap water and raw water conductivity is about 100 ~ 500μs/cm), and it can also be used to measure acid, alkali, brine, pulp or pulp and other media. However, these media cannot contain a large amount of magnetic substances and bubbles.
2. Quick Details
MLF electromagnetic flowmeter is explosion-proof design.
Function of low conductivity measurement.
There are nine languages options to meet the needs of different customers.
It has the function of self-regulation and self-examination.
Different outputs are optional: Hart,RS485 Profibus,4-20mA, frequency, pulse.
3. Specification
| MLF Type | Divided Type | Integrated Type | Explosive Proof Integrated Type | Battery Powered Type | Heat Energy Type |
| Accuracy | ±0.2% or ±0.5% | ||||
| Pipeline Diameter | DN10-DN2000 | DN10-DN600 | DN25-DN2000 | ||
| Flange | GB, ANSI, JIS, BS, Others | ||||
| Pressure | DN10-DN600 1.0 1.6 2.5 4.0MPa | ||||
| DN700-DN2000 0.6 1.0 1.6MPa | |||||
| Liner Material | CR, PTFE, PU, Hard Rubber, PFA, FEP(F46) | ||||
| Conductivity | ≥5µs/cm(Please contact us if it is less than 5µs/cm) | ||||
| Electrode | 316L SS, Hb, Ta, Ti, Hc, Tungsten Carbide, Others | ||||
| Protection Class | IP65, IP66, IP67, IP68 | ||||
| Medium Temperature | -25~180℃ (Please refer to liner material) |
-25~80℃(Please refer to liner material) | -25~180℃ (Please refer to liner material) |
||
| Ambient Temperature for Accuracy Influence | <±0.1%/10℃ or <±0.25%/10℃ at the ambient temperature of -25~60℃ | ||||
| Repetability | ≤±0.1% or ±0.25% | ||||
| Analog Output Error | ≤±0.02mA | ||||
| Velocity | 0.3~10m/s | ||||
| Electrical connection | M20x1.5 Seal Cartridge, GB1/2, NPT1/2 | ||||
| Output | 4-20mA, Pulse, RS485, Hart, Profibus | ||||
4. Dimensional Sketches
a. Dimension of Converter

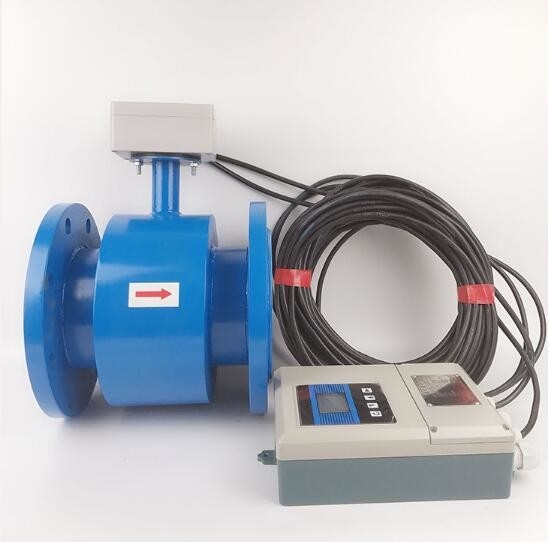

Divided Type
Integrated Type
Battery Powered Type
b. Dimension of Sensor
| Pipeline Diameter | Dimension | ||
| L | W | H | |
| 15 | 160 | 95 | 130 |
| 20 | 160 | 105 | 137 |
| 25 | 160 | 115 | 150 |
| 32 | 160 | 135 | 160 |
| 40 | 200 | 145 | 175 |
| 50 | 200 | 160 | 185 |
| 65 | 200 | 180 | 205 |
| 80 | 200 | 195 | 215 |
| 100 | 250 | 215 | 235 |
| 125 | 250 | 245 | 275 |
| 150 | 300 | 280 | 300 |
| 200 | 350 | 335 | 355 |
| 250 | 400 | 400 | 405 |
| 300 | 500 | 455 | 460 |
| 350 | 500 | 515 | 520 |
| 400 | 600 | 575 | 580 |
| 450 | 600 | 635 | 630 |
| 500 | 600 | 710 | 685 |
| 600 | 600 | 835 | 795 |
| 700 | 700 | 905 | 910 |
| 800 | 800 | 1020 | 1030 |
| 900 | 900 | 1120 | 1120 |
| 1000 | 1000 | 1245 | 1250 |
| 1200 | 1200 | 1465 | 1470 |
5.Company Profile
Melan Measurement & Control Instruments is located in Shanghai City. It is a high-tech manufacturer specialized in the design, development, manufacturing and sale of measurement and control instruments.
Our products are widely used in various fields, including electricity, chemical industry, metallurgy, brewing, oil and gas, textile, water conservancy, environmential protection, etc.
We own independent-courtyard modemized manufacturing workshops and an open office building. Melan has accumlated production and management experience in instruments from European and American and domestic famous companies.
We own first-class talent team, and all the products have reached advanced level at home and abroad. We provide our customers with complete and professional test control solutions and high-tech and high-quality products.
Melan is your reliable friend and partner. We are willing to try our best as dedication and perfection as motivation.
6.FAQ
Q: How long will you give me the reply?
A: We will contact you in 5 hours as soon as we can.
Q: What is the warranty of your prducts?
A: Our warranty is 12 months after the shipping date.
Q: What is the lead time of your products?
A: Normally our factory lead time is 10-12 working days.
Q: Can I OEM your products?
A: OEM and ODM customization are welcomed.
Q: What is your MOQ?
A: We have no MOQ limit, small quantity order is acceptable.
Q:What is the transport?
A: Express such as DHL, FedEx, UPS for freight prepaid, and we can also use your own courier account to do the freight collect. For more goods we can arrange by air or by sea.
